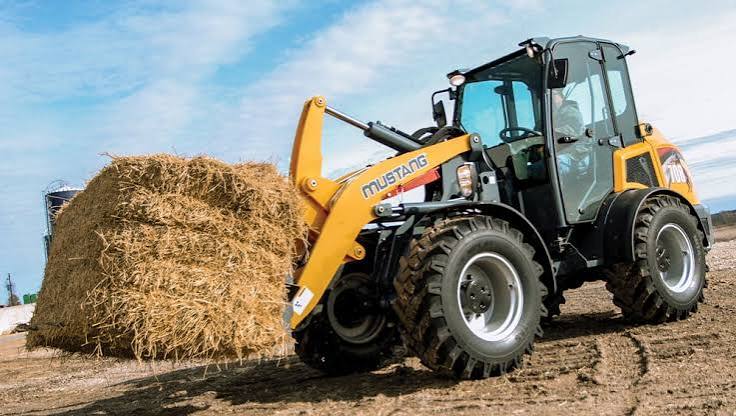

Mustang
ML48
- Operating Weight
- 9,921 lb
- Bucket Capacity - heaped
- 1.90 yd³
- Gross Power
- 65.0 hp
- Net Power
- 59.0 hp
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 9,921 lb |
|---|---|
| Fuel Capacity | 21.1 gal |
| Tire Size | 12.5 - 20 |
| Hydraulic System Fluid Capacity | 18.5 gal |
| Static Tipping Weight | 7,496 lb |
| Turning Radius | 135 in |
| Rear Axle Oscillation | 40 ° |
Engine
| Engine Model | F4M2011 |
|---|---|
| Displacement | 190 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 65.0 hp |
| Net Power | 59.0 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 19.5 gal/min |
|---|---|
| Relief Valve Setting | 3,046 psi |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 100 in |
| Wheelbase | 77 in |
| Width Over Tires | 67 in |
| Reach at Max Lift and Dump | 29 in |
| Length with Bucket on Ground | 200 in |
| Hinge Pin - Max Height | 128 in |
Transmission
| Max Speed - Forward | 12.4 mph |
|---|---|
| Max Speed - Reverse | 12.4 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 1 |
| Number of Reverse Gears | 1 |
Bucket
| Bucket Capacity - heaped | 1.90 yd³ |
|---|---|
| Bucket Capacity - struck | 1.20 yd³ |
| Dump Clearance at Max Raise | 98 in |
| Breakout Force | 7,868 lb |
| Bucket Width | 76 in |
