New HollandNew Holland
E200SR
Excavator
44 specifications

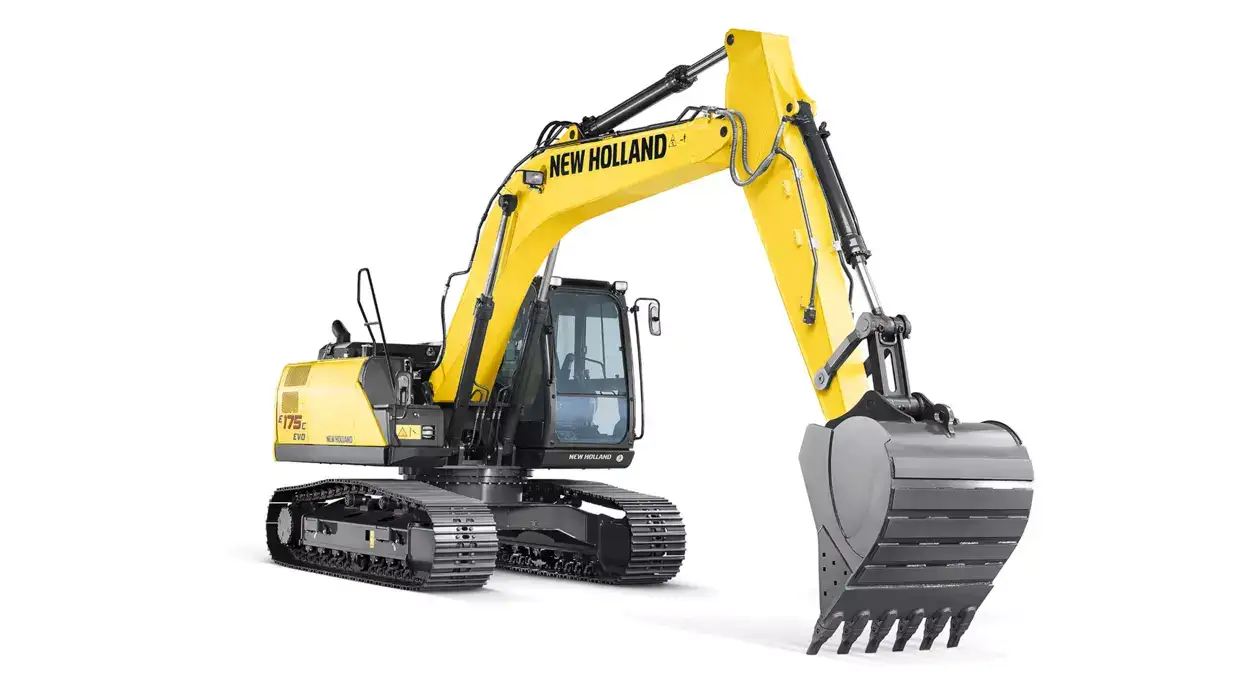

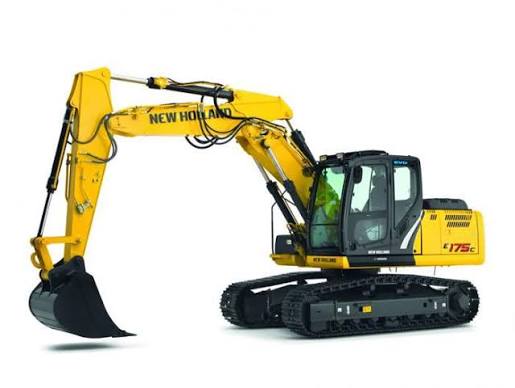

New Holland
E175
- Operating Weight
- 38,581 lb
- Max Digging Depth
- 223 in
- Max Digging Depth
- 239 in
- Net Power
- 112.0 hp
1 / 5
Image 1 of 5
Specifications
53 data points
Operating Specifications
| Operating Weight | 38,581 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| Hydraulic Pump Flow Capacity | 69.3 gal/min |
| Hydraulic System Fluid Capacity | 39.7 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 4.0 gal |
| Cooling System Fluid Capacity | 4.8 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | CNH F4ED484E |
|---|---|
| Displacement | 238 in³ |
| Power Measured @ | 2,150 rpm |
| Net Power | 112.0 hp |
| Aspiration | turbocharged and intercooler |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 332 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 118 in |
| Length of Track on Ground | 122 in |
| Tail Swing Radius | 100 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 2 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 24 in |
| Number of Carrier Rollers per Side | 7 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 223 in |
|---|---|
| Max Reach Along Ground | 335 in |
| Max Loading Height | 256 in |
| Max Vertical Wall Digging Depth | 214 in |
| Max Cutting Height | 361 in |
| Shipping Length of Unit | 343 in |
| Shipping Height of Unit | 118 in |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.29 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 239 in |
|---|---|
| Max Vertical Wall Digging Depth | 229 in |
| Max Cutting Height | 369 in |
| Max Loading Height | 263 in |
| Max Reach Along Ground | 349 in |
| Shipping Length of Unit | 342 in |
| Shipping Height of Unit | 118 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 258 in |
|---|---|
| Max Cutting Height | 383 in |
| Max Loading Height | 276 in |
| Max Vertical Wall Digging Depth | 251 in |
| Max Reach Along Ground | 369 in |
| Shipping Length of Unit | 342 in |
| Shipping Height of Unit | 118 in |
