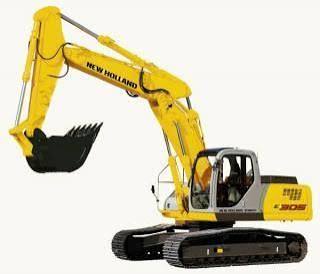

New Holland
E305EL
- Operating Weight
- 69,578 lb
- Max Digging Depth
- 247 in
- Max Digging Depth
- 259 in
- Net Power
- 201.0 hp
1 / 5
Image 1 of 5
Specifications
57 data points
Operating Specifications
| Operating Weight | 69,578 lb |
|---|---|
| Fuel Capacity | 118.1 gal |
| Hydraulic Pump Flow Capacity | 127.4 gal/min |
| Hydraulic System Fluid Capacity | 74.0 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 4.5 gal |
| Cooling System Fluid Capacity | 6.1 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | CNH 667TA/EEC |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 201.0 hp |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 627 lb-ft |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 126 in |
| Length of Track on Ground | 158 in |
| Tail Swing Radius | 117 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 49 in |
Undercarriage
| Ground Pressure | 9 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 247 in |
|---|---|
| Max Reach Along Ground | 379 in |
| Max Loading Height | 275 in |
| Max Vertical Wall Digging Depth | 238 in |
| Max Cutting Height | 384 in |
| Shipping Length of Unit | 413 in |
| Shipping Height of Unit | 138 in |
Bucket
| Reference Bucket Capacity | 1.50 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.20 yd³ |
| Minimum Bucket Capacity | 0.80 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 259 in |
|---|---|
| Max Vertical Wall Digging Depth | 251 in |
| Max Cutting Height | 393 in |
| Max Loading Height | 281 in |
| Max Reach Along Ground | 391 in |
| Shipping Length of Unit | 409 in |
| Shipping Height of Unit | 134 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 285 in |
|---|---|
| Max Cutting Height | 403 in |
| Max Loading Height | 292 in |
| Max Vertical Wall Digging Depth | 280 in |
| Max Reach Along Ground | 417 in |
| Shipping Length of Unit | 404 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 312 in |
|---|---|
| Max Cutting Height | 419 in |
| Max Reach Along Ground | 442 in |
| Max Loading Height | 306 in |
| Max Vertical Wall Dig Depth | 306 in |
| Shipping Length of Unit | 406 in |
