New Holland

E385

Excavator

Operating Weight
80,028 lb
Max Digging Depth
238 in
Max Digging Depth
248 in
Net Power
228.0 hp
All excavators

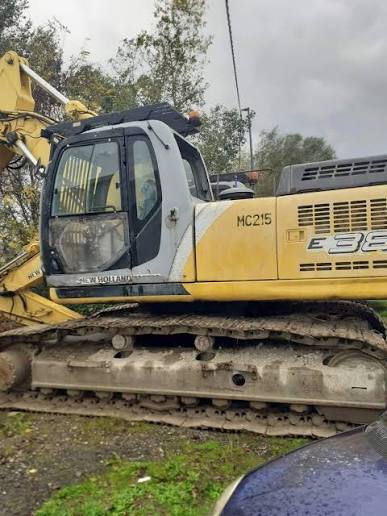

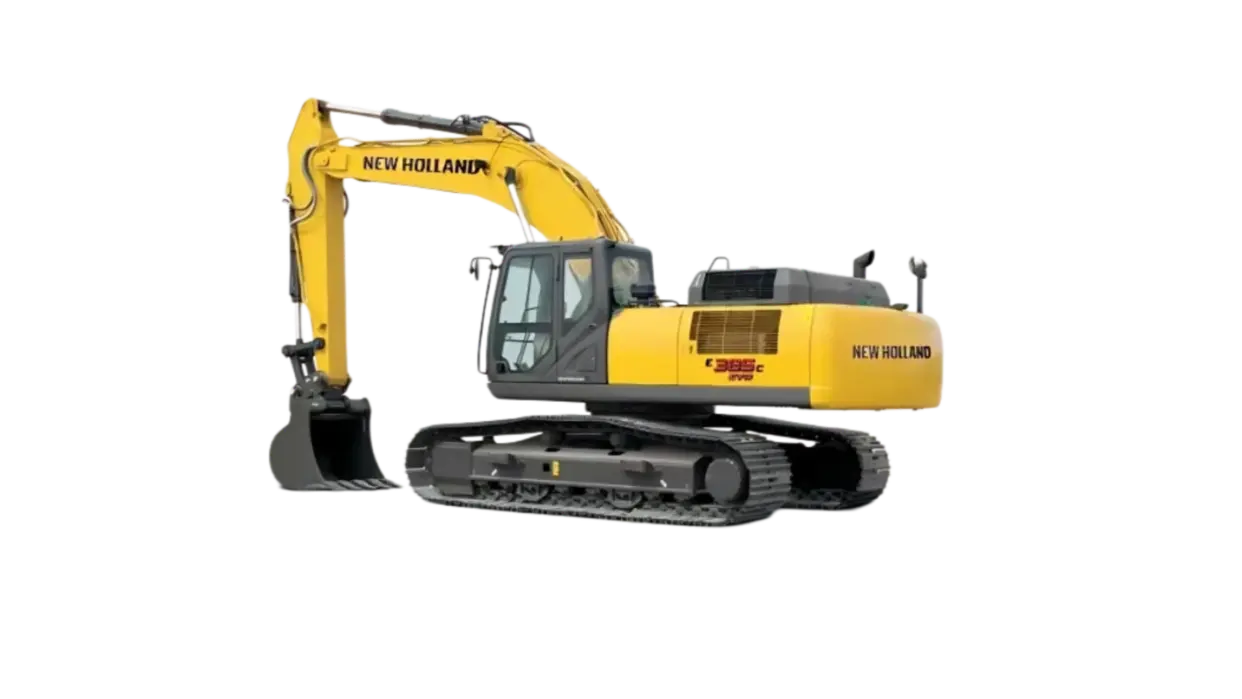

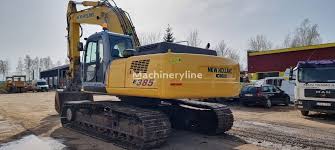

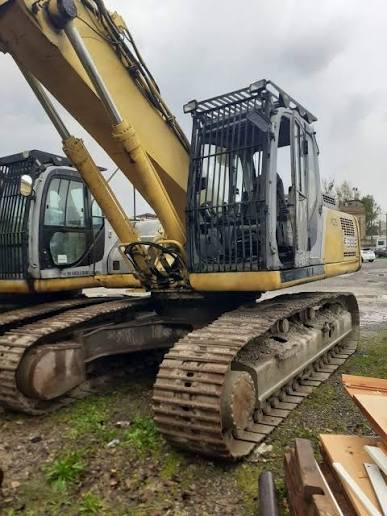

New Holland E385 Excavator
1 / 5
Image 1 of 5
Image: construction.newholland.com

Specifications

56 data points

Operating Specifications

Operating Specifications specifications
Operating Weight80,028 lb
Fuel Capacity148.0 gal
Hydraulic Pump Flow Capacity145.9 gal/min
Hydraulic System Fluid Capacity84.6 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity9.3 gal
Cooling System Fluid Capacity10.4 gal
Operating Voltage24 V
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine Model6HK1XDHAA-02
Displacement476 in³
Power Measured @2,000 rpm
Net Power228.0 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab126 in
Length of Track on Ground159 in
Tail Swing Radius132 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance49 in

Undercarriage

Undercarriage specifications
Ground Pressure11 psi
Track Gauge95 in
Number of Track Rollers per Side9
Max Travel Speed3.7 mph
Shoe Size24 in
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth238 in
Max Reach Along Ground401 in
Max Loading Height342 in
Max Vertical Wall Digging Depth233 in
Max Cutting Height472 in
Shipping Length of Unit438 in
Shipping Height of Unit130 in

Bucket

Bucket specifications
Reference Bucket Capacity0.99 yd³
Maximum Bucket Capacity2.39 yd³
Minimum Bucket Capacity0.99 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth248 in
Max Vertical Wall Digging Depth244 in
Max Cutting Height481 in
Max Loading Height353 in
Max Reach Along Ground411 in
Shipping Length of Unit434 in
Shipping Height of Unit132 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth275 in
Max Cutting Height502 in
Max Loading Height373 in
Max Vertical Wall Digging Depth271 in
Max Reach Along Ground437 in
Shipping Length of Unit433 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth307 in
Max Cutting Height527 in
Max Reach Along Ground469 in
Max Loading Height397 in
Max Vertical Wall Dig Depth304 in
Shipping Length of Unit434 in
