New Holland

E385C

Excavator

Operating Weight
82,144 lb
Max Digging Depth
299 in
Net Power
264.0 hp
All excavators

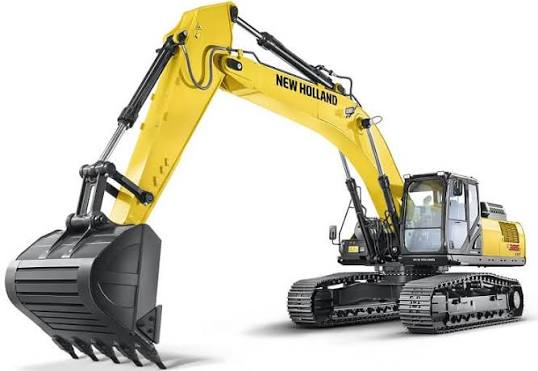

New Holland E385C Excavator
1 / 5
Image 1 of 5
Image: construction.newholland.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight82,144 lb
Fuel Capacity153.3 gal
Hydraulic Pump Flow Capacity155.4 gal/min
Hydraulic System Fluid Capacity109.2 gal
Engine Oil Capacity7.6 gal
Cooling System Fluid Capacity7.7 gal
Operating Voltage24 V
Alternator Supplied Amperage60 A

Engine

Engine specifications
Engine ModelEB-JO8E-TM
Displacement469 in³
Net Power264.0 hp
Max Torque736 lb-ft
Engine MakeHINO
Stroke5 in
Bore5 in

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab135 in
Length of Track on Ground442 in
Tail Swing Radius138 in
Width to Outside of Tracks134 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size32 in
Number of Shoes per Side48

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth299 in
Max Reach Along Ground228 in
Max Loading Height291 in
Max Vertical Wall Digging Depth260 in
Shipping Length of Unit442 in
Shipping Height of Unit135 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
