New Holland

EC160

Excavator

Operating Weight
35,715 lb
Max Digging Depth
229 in
Net Power
95.0 hp
All excavators

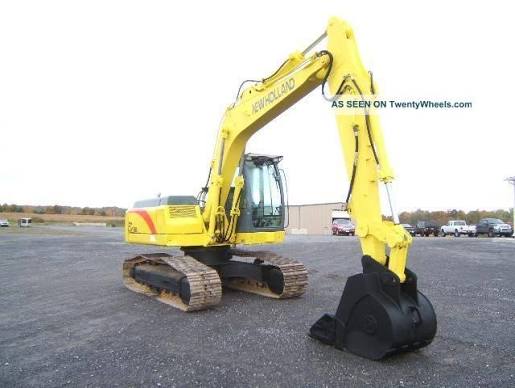

New Holland EC160 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight35,715 lb
Fuel Capacity66.1 gal
Hydraulic Pump Flow Capacity87.2 gal/min
Hydraulic System Fluid Capacity66.1 gal
Hydraulic System Relief Valve Pressure4,640 psi
Engine Oil Capacity3.1 gal
Cooling System Fluid Capacity4.9 gal
Swing Drive Fluid Capacity1.0 gal

Engine

Engine specifications
Engine Model4BT 3.9C
Displacement238 in³
Power Measured @2,200 rpm
Net Power95.0 hp
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab118 in
Length of Track on Ground133 in
Tail Swing Radius91 in
Width to Outside of Tracks103 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge79 in
Shoe Size24 in
Number of Shoes per Side24

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth229 in
Max Reach Along Ground343 in
Max Loading Height236 in
Max Vertical Wall Digging Depth150 in
Max Cutting Height328 in
Shipping Length of Unit312 in
Shipping Height of Unit118 in

Bucket

Bucket specifications
Reference Bucket Capacity1.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm
