New Holland

EH160LC

Excavator

Operating Weight
36,800 lb
Max Digging Depth
259 in
Max Digging Depth
240 in
Net Power
112.0 hp
All excavators

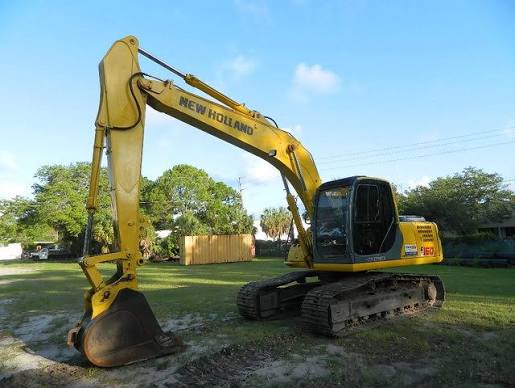

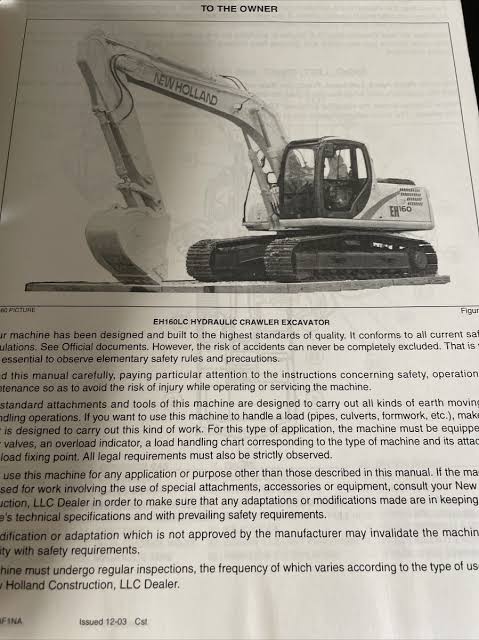

New Holland EH160LC Excavator
1 / 5
Image 1 of 5
Image: construction.newholland.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight36,800 lb
Fuel Capacity74.2 gal
Hydraulic Pump Flow Capacity80.8 gal/min
Hydraulic System Fluid Capacity42.0 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity4.0 gal
Cooling System Fluid Capacity5.0 gal
Operating Voltage12 V
Alternator Supplied Amperage35 A

Engine

Engine specifications
Engine Model4D34-TEG
Displacement238 in³
Power Measured @2,200 rpm
Net Power112.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab117 in
Length of Track on Ground130 in
Tail Swing Radius100 in
Width to Outside of Tracks102 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge79 in
Max Travel Speed3.7 mph
Shoe Size24 in
Drawbar Pull35,100 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth259 in
Max Reach Along Ground374 in
Max Loading Height275 in
Max Vertical Wall Digging Depth238 in
Max Cutting Height379 in
Shipping Length of Unit341 in
Shipping Height of Unit118 in

Bucket

Bucket specifications
Reference Bucket Capacity0.80 yd³
Maximum Bucket Capacity1.40 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth240 in
Max Vertical Wall Digging Depth204 in
Max Cutting Height362 in
Max Loading Height259 in
Max Reach Along Ground354 in
Shipping Length of Unit341 in
Shipping Height of Unit117 in
