New Holland

LW270.B

Wheel Loader

Operating Weight
51,742 lb
Bucket Capacity - heaped
5.40 yd³
Gross Power
306.0 hp
Net Power
321.0 hp
All wheel loaders

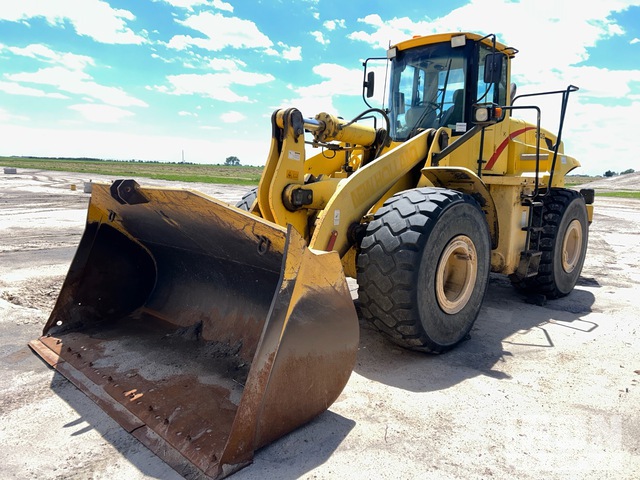

New Holland LW270.B Wheel Loader
1 / 5
Image 1 of 5
Image: eu-ru.ironplanet.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight51,742 lb
Fuel Capacity96.2 gal
Hydraulic System Fluid Capacity43.6 gal
Static Tipping Weight42,880 lb
Operating Voltage24 V
Engine Oil Fluid Capacity8.0 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity12.2 gal
Rear Axle/Diff Fluid Capacity12.2 gal
Cooling System Fluid Capacity11.4 gal
Transmission Fluid Capacity8.0 gal

Engine

Engine specifications
Engine ModelCummins QSM11 668T/M2 A Tier 2 certified
Displacement659 in³
Power Measured @1,800 rpm
Gross Power306.0 hp
Net Power321.0 hp
Number of Cylinders6
AspirationTurbocharged air to air cooled
Torque Measured @1,400 rpm
Torque Rise51.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity52.6 gal/min
Raise Time6.3 s
Lower Time4.2 s
Dump Time1.5 s
Relief Valve Setting3,046 psi
Pump Typedual gear pump

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab142 in
Wheelbase134 in
Width Over Tires118 in
Reach at Max Lift and Dump46 in
Length with Bucket on Ground346 in
Hinge Pin - Max Height174 in

Transmission

Transmission specifications
Max Speed - Forward23.0 mph
Max Speed - Reverse24.8 mph
Transmission Typecountershaft power shift
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped5.40 yd³
Bucket Capacity - struck4.60 yd³
Dump Clearance at Max Raise124 in
Breakout Force51,032 lb
Bucket Width119 in
