New Holland
YTO
WY10
Excavator
20 specifications
1 / 5

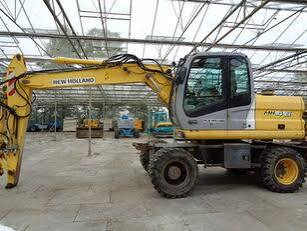

Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight | 35,274 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| Hydraulic Pump Flow Capacity | 48.1 gal/min |
| Hydraulic System Fluid Capacity | 52.9 gal |
| Engine Oil Capacity | 3.4 gal |
| Cooling System Fluid Capacity | 6.4 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Tire Size | 10.00-20 |
| Oscillating Axle Angle | 14 ° |
Engine
| Engine Model | CNH F4BE0484E*D601 |
|---|---|
| Displacement | 238 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 118.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged with intercooler |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 124 in |
| Wheelbase | 101 in |
| Overall Width | 8 in |
| Tail Swing Radius | 77 in |
| Upper Structure Clearance | 48 in |
| Overall Width - Outriggers Down | 145 in |
Transmission
| Max Travel Speed | 21.5 mph |
|---|
Bucket
| Reference Bucket Capacity | 0.41 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.99 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 8 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 204 in |
|---|---|
| Max Cutting Height | 370 in |
| Max Reach Along Ground | 320 in |
| Max Loading Height | 272 in |
| Shipping Length of Unit | 305 in |
| Shipping Height of Unit | 124 in |
| Max Vertical Wall Dig Depth | 156 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 220 in |
|---|---|
| Max Cutting Height | 380 in |
| Max Reach Along Ground | 335 in |
| Max Loading Height | 284 in |
| Shipping Height of Unit | 124 in |
| Shipping Length of Unit | 308 in |
| Max Vertical Wall Dig Depth | 175 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 239 in |
|---|---|
| Max Cutting Height | 397 in |
| Max Reach Along Ground | 355 in |
| Max Loading Height | 301 in |
| Shipping Height of Unit | 132 in |
| Shipping Length of Unit | 301 in |
| Max Vertical Wall Dig Depth | 196 in |
