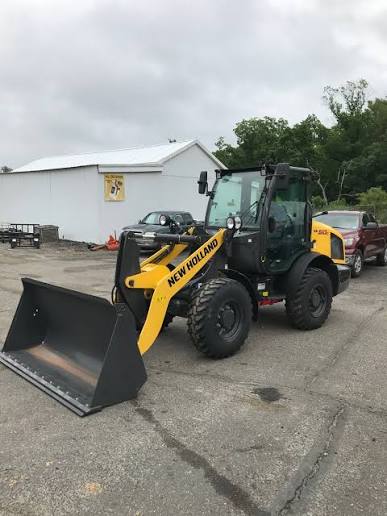

New Holland
W50TC
- Operating Weight
- 10,258 lb
- Bucket Capacity - heaped
- 0.99 yd³
- Gross Power
- 55.0 hp
- Net Power
- 51.0 hp
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 10,258 lb |
|---|---|
| Fuel Capacity | 26.4 gal |
| Tire Size | 335/80 R18 |
| Hydraulic System Fluid Capacity | 14.8 gal |
| Static Tipping Weight | 7,377 lb |
| Operating Voltage | 12 V |
| Turning Radius | 152 in |
| Engine Oil Fluid Capacity | 2.6 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 2.0 gal |
| Rear Axle/Diff Fluid Capacity | 2.4 gal |
| Cooling System Fluid Capacity | 3.0 gal |
Engine
| Engine Model | F4M2011 |
|---|---|
| Displacement | 190 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 55.0 hp |
| Net Power | 51.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Natural |
| Torque Measured @ | 1,700 rpm |
Hydraulic System
| Pump Flow Capacity | 14.0 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.0 s |
| Dump Time | 1.0 s |
| Relief Valve Setting | 3,335 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 107 in |
| Wheelbase | 1,031 in |
| Width Over Tires | 73 in |
| Reach at Max Lift and Dump | 33 in |
| Length with Bucket on Ground | 210 in |
| Hinge Pin - Max Height | 124 in |
Transmission
| Max Speed - Forward | 11.6 mph |
|---|---|
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 0.99 yd³ |
|---|---|
| Bucket Capacity - struck | 0.80 yd³ |
| Dump Clearance at Max Raise | 111 in |
| Breakout Force | 8,386 lb |
| Bucket Width | 76 in |
