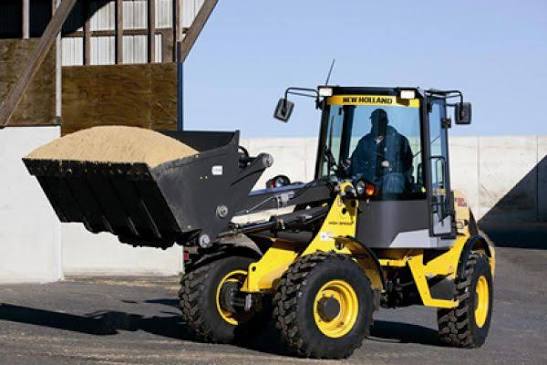

New Holland
W80BTC
- Operating Weight
- 12,727 lb
- Bucket Capacity - heaped
- 1.40 yd³
- Gross Power
- 82.0 hp
- Net Power
- 77.0 hp
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 12,727 lb |
|---|---|
| Fuel Capacity | 26.5 gal |
| Tire Size | 405/70 R20 SPT9 |
| Hydraulic System Fluid Capacity | 19.6 gal |
| Static Tipping Weight | 9,740 lb |
| Operating Voltage | 12 V |
| Engine Oil Fluid Capacity | 2.3 gal |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 2.2 gal |
| Rear Axle/Diff Fluid Capacity | 2.2 gal |
| Cooling System Fluid Capacity | 4.4 gal |
Engine
| Engine Model | FPT F5C |
|---|---|
| Displacement | 189 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 82.0 hp |
| Net Power | 77.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Natural |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 21.2 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.0 s |
| Dump Time | 1.0 s |
| Relief Valve Setting | 3,916 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 110 in |
| Wheelbase | 94 in |
| Width Over Tires | 78 in |
| Reach at Max Lift and Dump | 36 in |
| Length with Bucket on Ground | 223 in |
| Hinge Pin - Max Height | 137 in |
Transmission
| Max Speed - Forward | 12.4 mph |
|---|---|
| Max Speed - Reverse | 12.4 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.40 yd³ |
|---|---|
| Bucket Capacity - struck | 1.10 yd³ |
| Dump Clearance at Max Raise | 106 in |
| Bucket Width | 83 in |
