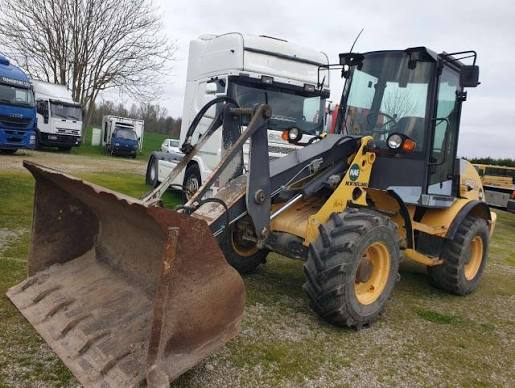

New Holland
W80TC
- Operating Weight
- 12,727 lb
- Bucket Capacity - heaped
- 1.50 yd³
- Gross Power
- 75.0 hp
- Net Power
- 72.0 hp
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 12,727 lb |
|---|---|
| Fuel Capacity | 26.4 gal |
| Tire Size | 405/70 R20 |
| Hydraulic System Fluid Capacity | 19.5 gal |
| Static Tipping Weight | 9,744 lb |
| Operating Voltage | 12 V |
| Turning Radius | 152 in |
| Engine Oil Fluid Capacity | 2.6 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 2.4 gal |
| Rear Axle/Diff Fluid Capacity | 2.5 gal |
| Cooling System Fluid Capacity | 3.4 gal |
Engine
| Engine Model | BF4M2011 |
|---|---|
| Displacement | 190 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 75.0 hp |
| Net Power | 72.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,600 rpm |
Hydraulic System
| Pump Flow Capacity | 19.0 gal/min |
|---|---|
| Raise Time | 6.6 s |
| Lower Time | 3.5 s |
| Dump Time | 1.1 s |
| Relief Valve Setting | 3,335 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 111 in |
| Wheelbase | 94 in |
| Width Over Tires | 78 in |
| Reach at Max Lift and Dump | 36 in |
| Length with Bucket on Ground | 227 in |
| Hinge Pin - Max Height | 137 in |
Transmission
| Max Speed - Forward | 12.4 mph |
|---|---|
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.50 yd³ |
|---|---|
| Bucket Capacity - struck | 1.20 yd³ |
| Dump Clearance at Max Raise | 111 in |
| Breakout Force | 11,241 lb |
| Bucket Width | 76 in |
