Ponsse

Elk

Forwarder

Operating Weight - 8wd
34,392 lb
Operating Weight - 6wd
30,865 lb
All forwarders

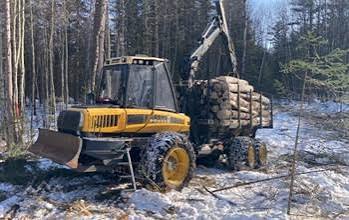

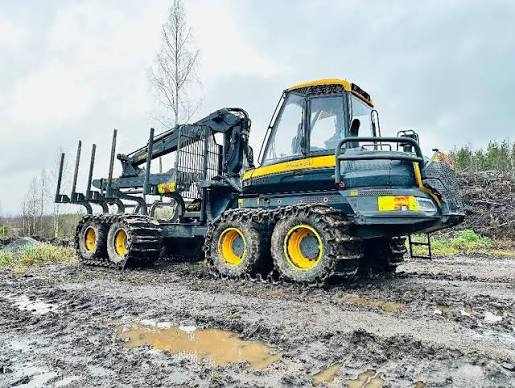

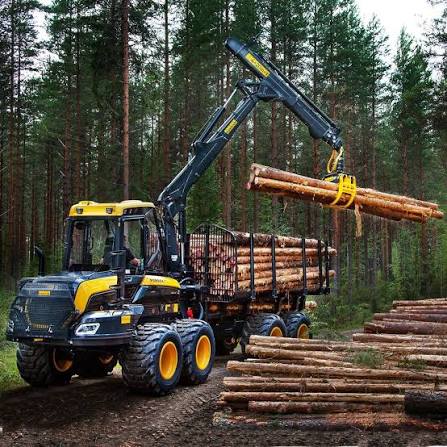

Ponsse Elk Forwarder
1 / 5
Image 1 of 5
Image: directindustry.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - 8wd34,392 lb
Operating Weight - 6wd30,865 lb
Fuel Capacity34.4 gal
Hydraulic System Fluid Capacity34.4 gal
Alternator Supplied Amperage160 A
Operating Voltage24 V
Front/Rear Tire Size - 6wd710/55x34 / 710/50x26.5

Engine

Engine specifications
Engine ModelOM904LA
Power173.0 hp
Torque498 lb-ft

Hydraulic System

Hydraulic System specifications
Pump TypeLoad-sensing system

Dimensions

Dimensions specifications
Ground Clearance26 in
Width Over Tires118 in
Length384 in
Length of Bunk Area235 in

Transmission

Transmission specifications
Transmission TypeHydrostatic-mechanical
Number of Forward Gears2
Number of Reverse Gears2

Bunk

Bunk specifications
Load Area21.49 yd³
Load Weight - 6wd28,660 lb

Crane

Crane specifications
Max Reach307 in
Gross Lift Torque78,181 lb-ft
Crane TypePonsse K70+
