Ponsse

Wisent

Forwarder

Operating Weight - 8wd
31,085 lb
Operating Weight - 6wd
27,999 lb
Max Speed
17.4 mph
All forwarders

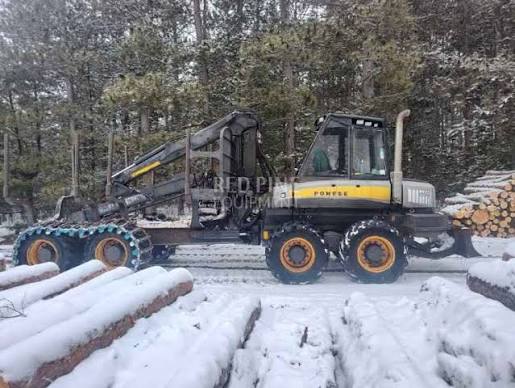

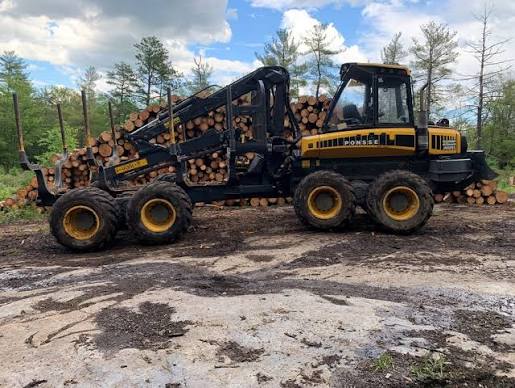

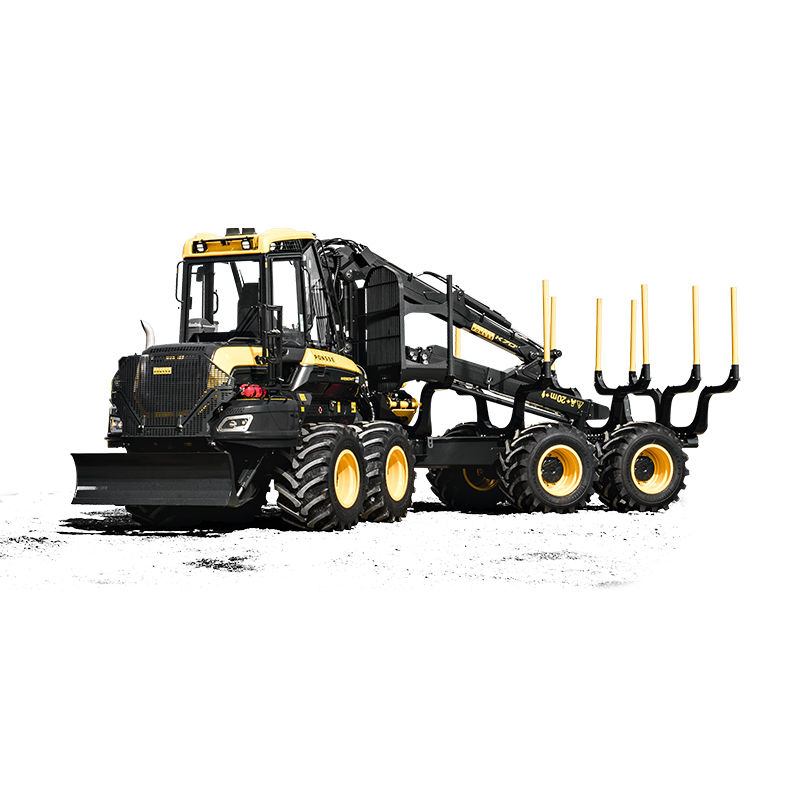

Ponsse Wisent Forwarder
1 / 5
Image 1 of 5
Image: directindustry.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - 8wd31,085 lb
Operating Weight - 6wd27,999 lb
Fuel Capacity34.4 gal
Hydraulic System Fluid Capacity34.4 gal
Alternator Supplied Amperage160 A
Operating Voltage24 V
Front/Rear Tire Size - 8wd600/700x26.5 / 600/700x26.5
Front/Rear Tire Size - 6wd600/700x34 / 600/700x26.5

Engine

Engine specifications
Engine ModelOM904LA
Torque Measured @1,600 rpm
Power173.0 hp
Torque498 lb-ft

Hydraulic System

Hydraulic System specifications
Pump TypeLoad-sensing system

Dimensions

Dimensions specifications
Ground Clearance26 in
Width Over Tires113 in
Length356 in
Length of Bunk Area178 in

Transmission

Transmission specifications
Max Speed17.4 mph
Transmission TypeHydrostatic-mechanical
Number of Forward Gears2
Number of Reverse Gears2

Bunk

Bunk specifications
Load Area19.33 yd³
Load Weight - 6wd26,456 lb

Crane

Crane specifications
Max Reach395 in
Gross Lift Torque73,018 lb-ft
Crane TypePonsse K70+M/S
