Rottne

SMV RAPID

Forwarder

Operating Weight - 8wd
38,581 lb
Max Speed
15.6 mph
Displacement
415 in³
All forwarders

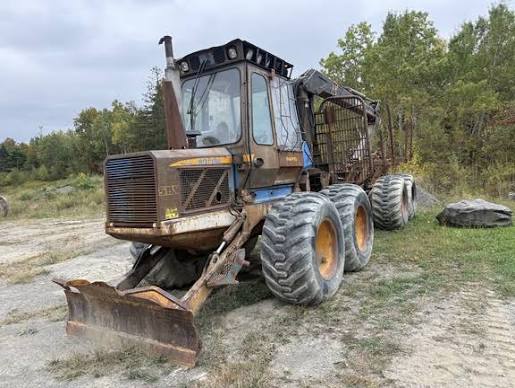

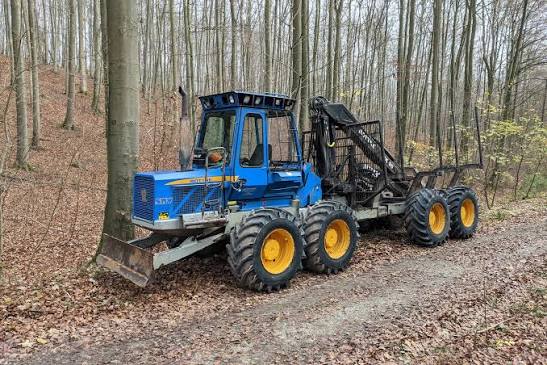

Rottne SMV RAPID Forwarder
1 / 5
Image 1 of 5
Image: forestryequipmentsales.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - 8wd38,581 lb
Fuel Capacity51.6 gal
Hydraulic System Fluid Capacity39.7 gal
Alternator Supplied Amperage110 A
Operating Voltage24 V
Front/Rear Tire Size - 8wd620//55x30.5

Engine

Engine specifications
Engine Modele 6068 HF 275
Displacement415 in³
Power200.0 hp
Torque597 lb-ft

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure2,550 psi

Dimensions

Dimensions specifications
Ground Clearance28 in
Width Over Tires114 in
Length378 in

Transmission

Transmission specifications
Max Speed15.6 mph
Transmission TypeHydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bunk

Bunk specifications
Load Area24.92 yd³
Load Weight - 8wd35,274 lb

Crane

Crane specifications
Max Reach280 in
Gross Lift Torque18,430 lb-ft
