Rottne

Solid F12 S

Forwarder

Operating Weight - 8wd
26,456 lb
Max Speed
15.6 mph
Displacement
415 in³
All forwarders

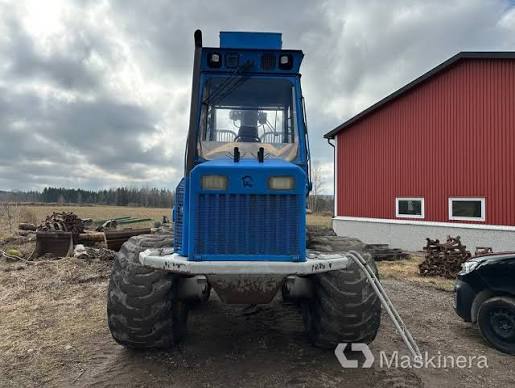

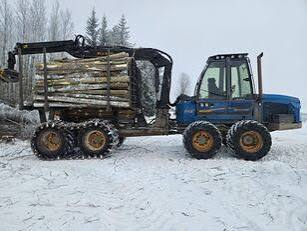

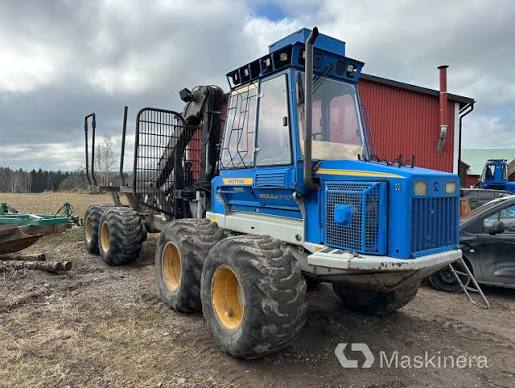

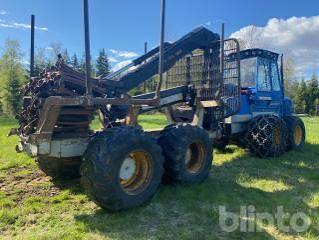

Rottne Solid F12 S Forwarder
1 / 5
Image 1 of 5
Image: agroline.ie

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - 8wd26,456 lb
Fuel Capacity42.3 gal
Hydraulic System Fluid Capacity55.5 gal
Alternator Supplied Amperage110 A
Operating Voltage24 V
Front/Rear Tire Size - 8wd600x26.5

Engine

Engine specifications
Engine Modele 6068 TF 272
Displacement415 in³
Power163.0 hp
Torque449 lb-ft

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure2,500 psi

Dimensions

Dimensions specifications
Ground Clearance25 in
Wheelbase91 in
Width Over Tires141 in
Length380 in

Transmission

Transmission specifications
Max Speed15.6 mph
Transmission TypeHydrostatic mechanical
Number of Forward Gears2
Number of Reverse Gears2

Bunk

Bunk specifications
Load Area22.56 yd³
Load Weight - 8wd26,456 lb

Crane

Crane specifications
Max Reach154 in
Gross Lift Torque12,900 lb-ft
