Kobelco
SK350LC-10 H&W
Excavator
35 specifications

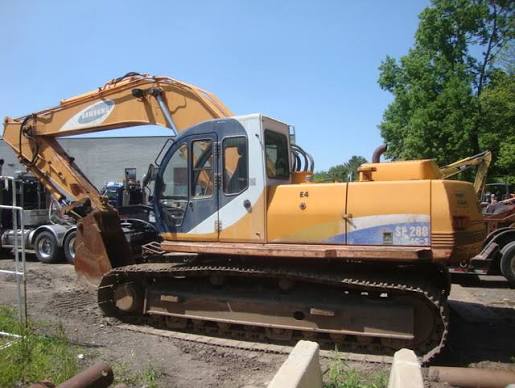

Samsung
SE280 LC-2
- Operating Weight
- 62,832 lb
- Max Digging Depth
- 296 in
- Max Digging Depth
- 275 in
- Net Power
- 168.0 hp
1 / 5
Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 62,832 lb |
|---|---|
| Fuel Capacity | 134.8 gal |
| Hydraulic Pump Flow Capacity | 121.6 gal/min |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
Engine
| Engine Model | C8.3-C |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 168.0 hp |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 553 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 121 in |
| Length of Track on Ground | 158 in |
| Tail Swing Radius | 118 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 46 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 102 in |
| Max Travel Speed | 2.8 mph |
| Shoe Size | 24 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 296 in |
|---|---|
| Max Reach Along Ground | 418 in |
| Max Loading Height | 281 in |
| Max Vertical Wall Digging Depth | 250 in |
| Max Cutting Height | 401 in |
| Shipping Length of Unit | 415 in |
| Shipping Height of Unit | 133 in |
Bucket
| Reference Bucket Capacity | 1.70 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.69 yd³ |
| Minimum Bucket Capacity | 1.20 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 275 in |
|---|---|
| Max Vertical Wall Digging Depth | 240 in |
| Max Cutting Height | 388 in |
| Max Loading Height | 268 in |
| Max Reach Along Ground | 394 in |
| Shipping Length of Unit | 417 in |
| Shipping Height of Unit | 141 in |
