Samsung

SE280N LC-2

Excavator

Operating Weight
62,832 lb
Max Digging Depth
296 in
Max Digging Depth
275 in
Net Power
168.0 hp
All excavators

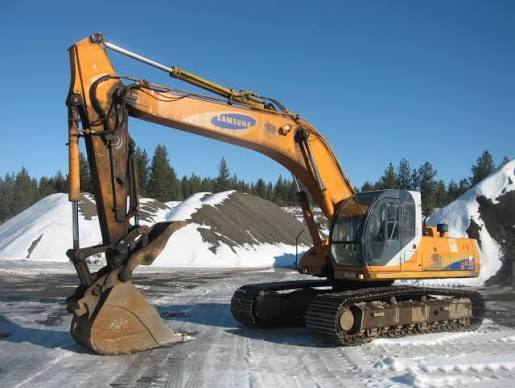

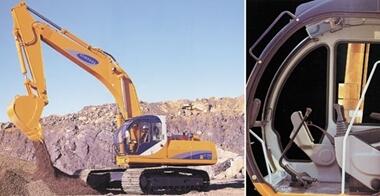

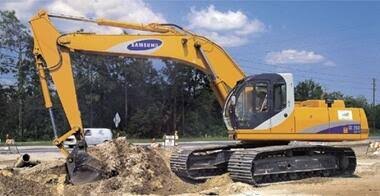

Samsung SE280N LC-2 Excavator
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight62,832 lb
Fuel Capacity134.8 gal
Hydraulic Pump Flow Capacity121.6 gal/min
Hydraulic System Relief Valve Pressure4,980 psi

Engine

Engine specifications
Engine ModelC8.3-C
Displacement360 in³
Power Measured @2,000 rpm
Net Power168.0 hp
Torque Measured @1,500 rpm
Max Torque553 lb-ft

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab133 in
Length of Track on Ground158 in
Tail Swing Radius118 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance46 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge95 in
Max Travel Speed2.8 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth296 in
Max Reach Along Ground418 in
Max Loading Height281 in
Max Vertical Wall Digging Depth250 in
Max Cutting Height401 in
Shipping Length of Unit415 in
Shipping Height of Unit133 in

Bucket

Bucket specifications
Reference Bucket Capacity1.70 yd³
Maximum Bucket Capacity2.69 yd³
Minimum Bucket Capacity1.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth275 in
Max Vertical Wall Digging Depth240 in
Max Cutting Height388 in
Max Loading Height268 in
Max Reach Along Ground394 in
Shipping Length of Unit417 in
Shipping Height of Unit141 in
