Samsung

SE450 LC-2

Excavator

Operating Weight
96,430 lb
Max Digging Depth
305 in
Net Power
296.0 hp
All excavators

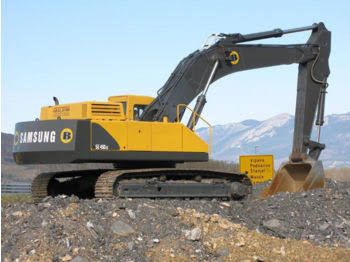

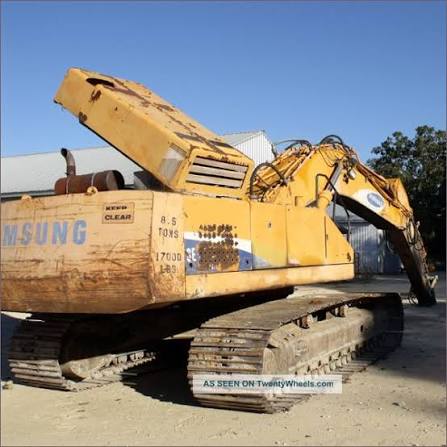

Samsung SE450 LC-2 Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight96,430 lb
Fuel Capacity171.8 gal
Hydraulic Pump Flow Capacity174.4 gal/min
Hydraulic System Relief Valve Pressure4,552 psi

Engine

Engine specifications
Engine ModelLTA 10-C
Power Measured @2,000 rpm
Net Power296.0 hp
Torque Measured @1,300 rpm
Max Torque976 lb-ft

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab128 in
Length of Track on Ground173 in
Tail Swing Radius150 in
Width to Outside of Tracks137 in
Removal Counterweight Clearance48 in

Undercarriage

Undercarriage specifications
Ground Pressure11 psi
Track Gauge114 in
Max Travel Speed2.7 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth305 in
Max Reach Along Ground475 in
Max Loading Height300 in
Max Cutting Height433 in
Shipping Length of Unit472 in
Shipping Height of Unit134 in

Bucket

Bucket specifications
Reference Bucket Capacity2.60 yd³
Maximum Bucket Capacity3.20 yd³
Minimum Bucket Capacity2.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
