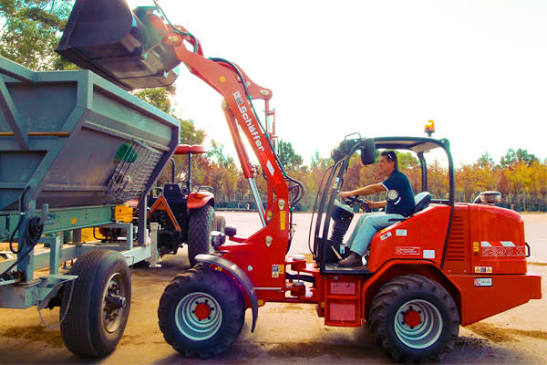

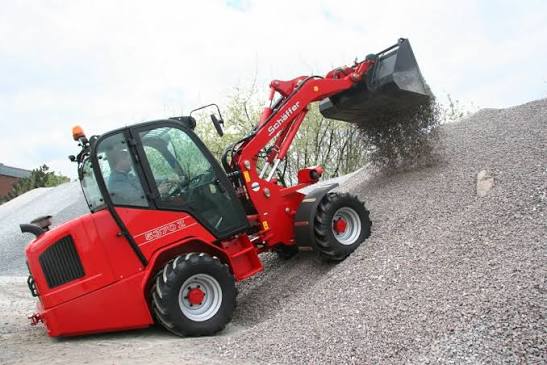

Schaffer
Case
21D
Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 11,023 lb |
|---|---|
| Tire Size | 500x45-20 |
| Static Tipping Weight | 5,842 lb |
| Turning Radius | 61 in |
Engine
| Engine Model | V3300 |
|---|---|
| Displacement | 201 in³ |
| Power Measured @ | 2,600 rpm |
| Net Power | 84.5 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 94 in |
| Wheelbase | 77 in |
| Width Over Tires | 70 in |
| Reach at Max Lift and Dump | 24 in |
| Length with Bucket on Ground | 192 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.10 yd³ |
|---|---|
| Dump Clearance at Max Raise | 107 in |
| Bucket Width | 74 in |
