Schaffer
Case
21D
Wheel Loader
43 specifications
1 / 5

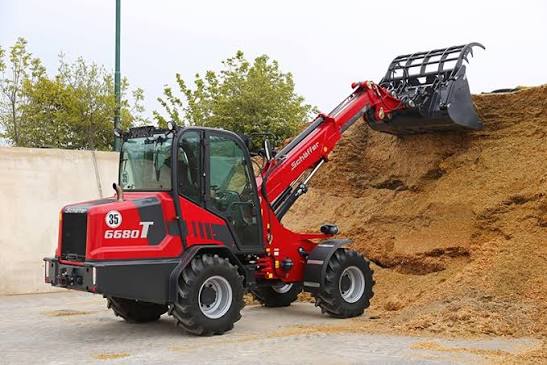

Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 13,228 lb |
|---|---|
| Fuel Capacity | 25.1 gal |
| Tire Size | 405x70-20 |
| Hydraulic System Fluid Capacity | 27.8 gal |
| Static Tipping Weight | 9,700 lb |
Engine
| Engine Model | BF4M2012 |
|---|---|
| Gross Power | 130.0 hp |
Hydraulic System
| Pump Flow Capacity | 52.4 gal/min |
|---|---|
| Relief Valve Setting | 7,000 psi |
Dimensions
| Height - Top of Cab | 97 in |
|---|---|
| Wheelbase | 86 in |
| Width Over Tires | 81 in |
| Reach at Max Lift and Dump | 19 in |
| Length with Bucket on Ground | 180 in |
| Hinge Pin - Max Height | 134 in |
Transmission
| Max Speed - Forward | 19.9 mph |
|---|---|
| Max Speed - Reverse | 19.9 mph |
| Transmission Type | hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.40 yd³ |
|---|---|
| Dump Clearance at Max Raise | 107 in |
| Breakout Force | 6,070 lb |
