Snorkel

TB100J

Aerial Lift

Max Platform Height
1,198 in
Overall Length
45 in
Overall Width
103 in
All aerial lifts

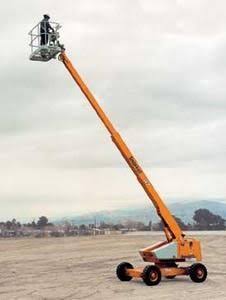

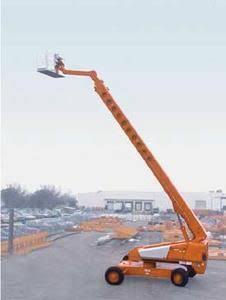

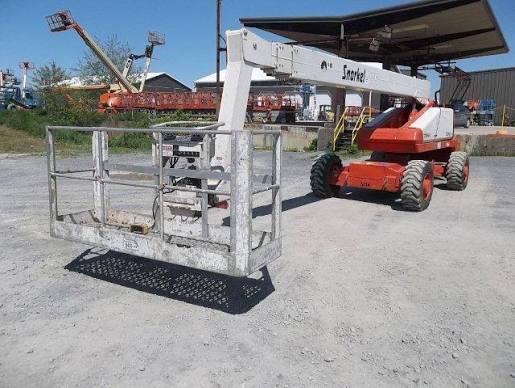

Snorkel TB100J Aerial Lift
1 / 5
Image 1 of 5
Image: discount-equipment.com

Specifications

23 data points

Engine

Engine specifications
Fuel Typegas/diesel

Dimensions

Dimensions specifications
Wheelbase146 in
Overall Length45 in
Overall Width103 in
Overall Height - mast lowered126 in
Stowed Width102 in
Stowed Height124 in
Boom Type/SizeSTJ ft (0.00 m)
Platform Size96 in

Transmission

Transmission specifications
4WDStd

Tires & Wheels

Tires & Wheels specifications
Tire Size15x22.5

Performance

Performance specifications
Operating Weight33,001 lb
Max Speed3.0 mph
Tire Size15x22.5
Hydraulic System Fluid Capacity89.9 gal
Tire Fill/TypeFoam
Fuel Capacity50.1 gal

Capacity

Capacity specifications
Platform Capacity500 lb

Platform

Platform specifications
Max Platform Height1,198 in
Max Platform Weight Capacity600 lb
Platform Inner Length96 in
Platform Inner Width30 in
Max Horizontal Reach792 in
