Snorkel

TB120

Aerial Lift

Max Platform Height
1,441 in
Overall Length
42 in
Overall Width
103 in
All aerial lifts

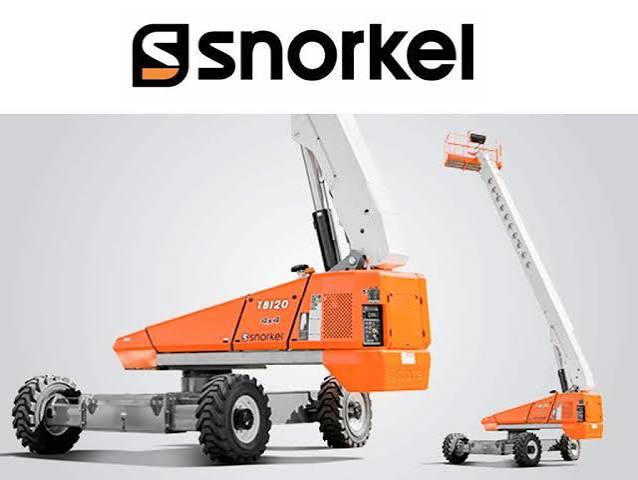

Snorkel TB120 Aerial Lift
1 / 5
Image 1 of 5
Image: conger.com

Specifications

20 data points

Engine

Engine specifications
Fuel Typegas/diesel

Dimensions

Dimensions specifications
Wheelbase146 in
Overall Length42 in
Overall Width103 in
Overall Height - mast lowered119 in
Stowed Width96 in
Stowed Height120 in

Transmission

Transmission specifications
4WDstd.

Tires & Wheels

Tires & Wheels specifications
Tire Size18x22.5

Performance

Performance specifications
Operating Weight39,500 lb
Max Speed3.0 mph
Tire Size15x22.5
Hydraulic System Fluid Capacity89.9 gal
Tire Fill/TypeFoam
Fuel Capacity50.1 gal

Platform

Platform specifications
Max Platform Height1,441 in
Max Platform Weight Capacity500 lb
Platform Inner Length96 in
Platform Inner Width30 in
Max Horizontal Reach745 in
