Sumitomo

SH160-5

Excavator

Operating Weight
37,258 lb
Max Digging Depth
239 in
Net Power
119.7 hp
All excavators

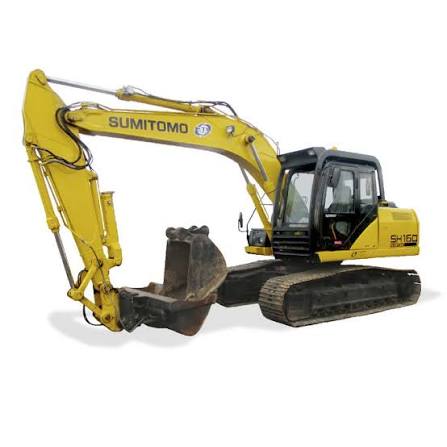

Sumitomo SH160-5 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight37,258 lb
Hydraulic Pump Flow Capacity75.1 gal/min
Hydraulic System Relief Valve Pressure5,367 psi

Engine

Engine specifications
Engine ModelA1-4JJ1X
Displacement183 in³
Power Measured @2,200 rpm
Net Power119.7 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Length of Track on Ground126 in
Tail Swing Radius97 in
Width to Outside of Tracks102 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.4 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth239 in
Max Reach Along Ground356 in
Max Loading Height260 in
Max Vertical Wall Digging Depth200 in
Shipping Length of Unit332 in
Shipping Height of Unit118 in

Bucket

Bucket specifications
Reference Bucket Capacity0.90 yd³
