Sumitomo

SH300-5

Excavator

Operating Weight
64,155 lb
Max Digging Depth
280 in
Net Power
206.6 hp
All excavators

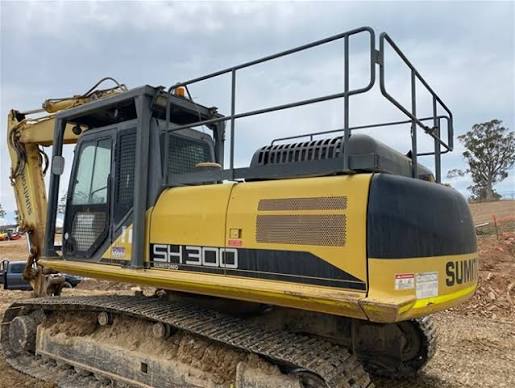

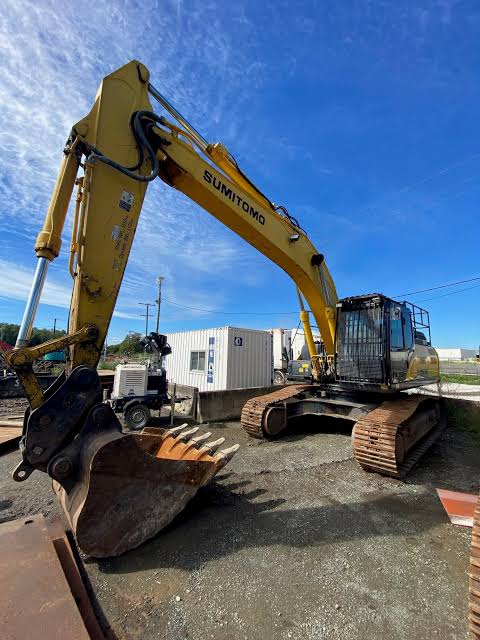

Sumitomo SH300-5 Excavator
1 / 5
Image 1 of 5
Image: dir.indiamart.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight64,155 lb
Hydraulic Pump Flow Capacity128.4 gal/min
Hydraulic System Relief Valve Pressure5,512 psi

Engine

Engine specifications
Engine ModelAH-6HK1X
Displacement475 in³
Power Measured @1,800 rpm
Net Power206.6 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Length of Track on Ground157 in
Tail Swing Radius125 in
Width to Outside of Tracks126 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth280 in
Max Reach Along Ground421 in
Max Loading Height280 in
Max Vertical Wall Digging Depth241 in
Shipping Length of Unit411 in
Shipping Height of Unit128 in

Bucket

Bucket specifications
Reference Bucket Capacity1.50 yd³
