Sumitomo

SH350HD-5

Excavator

Operating Weight
78,485 lb
Max Digging Depth
289 in
Net Power
270.9 hp
All excavators
Sumitomo SH350HD-5 Excavator
1 / 5

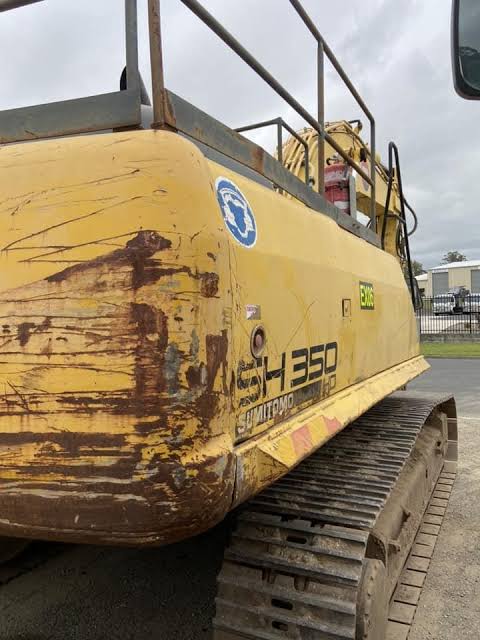

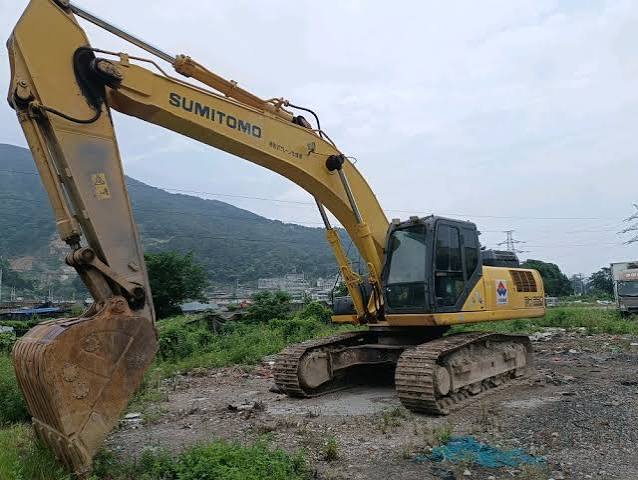

Image 1 of 5
Image: lectura-specs.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight78,485 lb
Hydraulic Pump Flow Capacity153.3 gal/min
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelAA-6HK1XYSS
Displacement475 in³
Power Measured @2,000 rpm
Net Power270.9 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Length of Track on Ground148 in
Tail Swing Radius137 in
Width to Outside of Tracks126 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth289 in
Max Reach Along Ground437 in
Max Loading Height285 in
Max Vertical Wall Digging Depth251 in
Shipping Length of Unit435 in
Shipping Height of Unit128 in

Bucket

Bucket specifications
Reference Bucket Capacity1.90 yd³
