Sumitomo

SH480LHD-5

Excavator

Operating Weight
102,956 lb
Max Digging Depth
305 in
Net Power
362.1 hp
All excavators

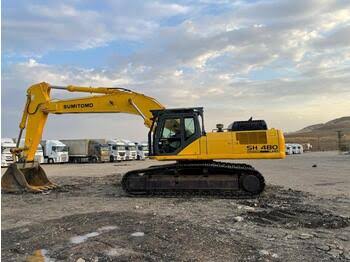

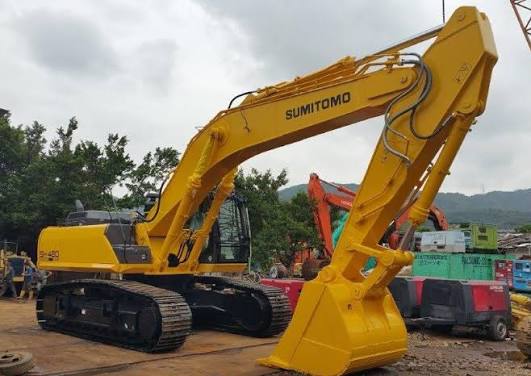

Sumitomo SH480LHD-5 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight102,956 lb
Hydraulic Pump Flow Capacity190.3 gal/min
Hydraulic System Relief Valve Pressure5,265 psi

Engine

Engine specifications
Engine ModelAH-6UZ1XYSS
Displacement601 in³
Power Measured @1,950 rpm
Net Power362.1 hp

Dimensions

Dimensions specifications
Ground Clearance22 in
Length of Track on Ground174 in
Tail Swing Radius145 in
Width to Outside of Tracks132 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.3 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth305 in
Max Reach Along Ground469 in
Max Loading Height305 in
Max Vertical Wall Digging Depth259 in
Shipping Length of Unit474 in
Shipping Height of Unit143 in

Bucket

Bucket specifications
Reference Bucket Capacity2.39 yd³
