Sumitomo

SH800LHD-3

Excavator

Operating Weight
172,843 lb
Max Digging Depth
343 in
Max Digging Depth
355 in
Net Power
443.9 hp
All excavators

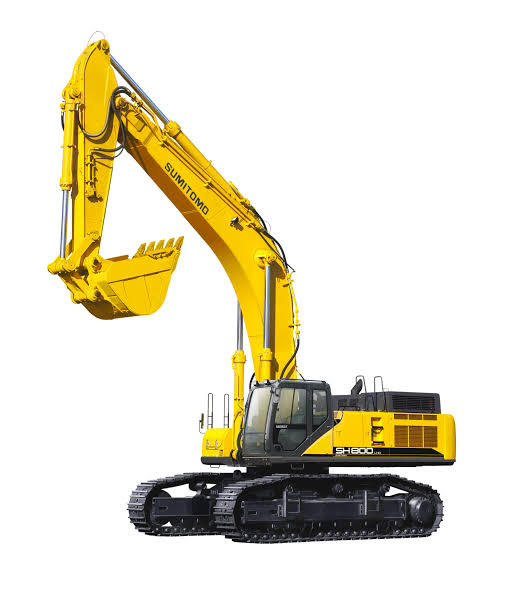

Sumitomo SH800LHD-3 Excavator
1 / 5
Image 1 of 5
Image: semhire.com.au

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight172,843 lb
Fuel Capacity237.8 gal
Hydraulic System Fluid Capacity190.3 gal
Hydraulic System Relief Valve Pressure4,554 psi

Engine

Engine specifications
Engine ModelBB-6WG1X
Displacement957 in³
Power Measured @1,800 rpm
Net Power443.9 hp

Dimensions

Dimensions specifications
Ground Clearance36 in
Height - Top of Cab190 in
Length of Track on Ground200 in
Tail Swing Radius162 in
Width to Outside of Tracks173 in

Undercarriage

Undercarriage specifications
Ground Pressure16 psi
Track Gauge146 in
Max Travel Speed2.7 mph
Shoe Size26 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth343 in
Max Reach Along Ground557 in
Max Loading Height352 in
Max Vertical Wall Digging Depth254 in
Max Cutting Height509 in
Shipping Length of Unit557 in
Shipping Height of Unit190 in

Bucket

Bucket specifications
Reference Bucket Capacity4.39 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth355 in
Max Cutting Height536 in
Max Loading Height347 in
Max Reach Along Ground559 in
Shipping Length of Unit512 in
Shipping Height of Unit199 in
