Tata Hitachi

EX300 LCH

Excavator

Net Power
220.0 hp
All excavators

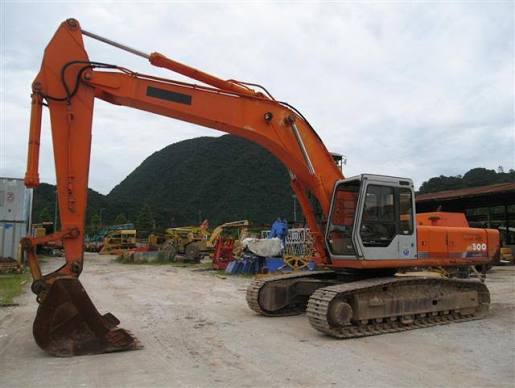

Tata Hitachi EX300 LCH Excavator
1 / 5
Image 1 of 5
Image: indiamart.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity135.0 gal
Hydraulic System Fluid Capacity87.2 gal
Engine Oil Capacity6.0 gal
Cooling System Fluid Capacity14.6 gal
Operating Voltage24 V
Swing Speed12 rpm

Engine

Engine specifications
Engine Model6CTA8.3C
Net Power220.0 hp
Aspirationturbocharged

Undercarriage

Undercarriage specifications
Max Travel Speed2.5 mph
Number of Upper Rollers2
Loading Shovel Operating Weight70,989 lb
Loading Shovel Shoe Width20 in
Loading Shovel Ground Pressure10 psi
Number of Lower Rollers9
Backhoe Shoe Width 120 in
Backhoe Operating Weight - Shoe 169,446 lb
Backhoe Ground Pressure - Shoe 110 psi
Number of Track Shoes per Side50

Loading Shovel

Loading Shovel specifications
Max Dig Depth126 in
Max Cutting Height281 in
Max Dump Height150 in
Max Dig Reach313 in
Loading ShovelBoom 3400mm/Stick 3100mm

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth248 in
Max Cutting Height378 in
Max Dump Height260 in
Max Reach on Ground389 in
Max Vertical Wall Dig Depth185 in

Backhoe Boom / Stick 2

Backhoe Boom / Stick 2 specifications
Max Dig Depth270 in
Max Cutting Height388 in
Max Dump Height269 in
Max Reach on Ground408 in
Max Vertical Wall Dig Depth222 in
