Tata Hitachi
Kobelco
SK350LC-10 H&W
Excavator
35 specifications

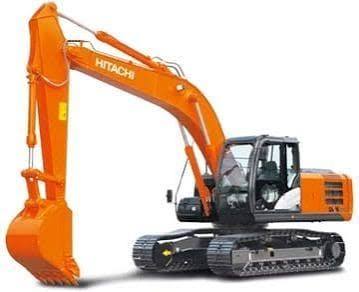

Tata Hitachi
ZAXIS330
- Operating Weight
- 68,343 lb
- Max Digging Depth
- 270 in
- Max Digging Depth
- 292 in
- Net Power
- 246.8 hp
1 / 5
Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 68,343 lb |
|---|---|
| Fuel Capacity | 148.0 gal |
| Hydraulic Pump Flow Capacity | 153.3 gal/min |
| Hydraulic System Fluid Capacity | 84.6 gal |
| Hydraulic System Relief Valve Pressure | 5,047 psi |
| Engine Oil Capacity | 9.6 gal |
| Cooling System Fluid Capacity | 9.3 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 4.4 gal |
Engine
| Engine Model | AA-6HK1X |
|---|---|
| Displacement | 475 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 246.8 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,700 rpm |
| Max Torque | 644 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 124 in |
| Length of Track on Ground | 148 in |
| Tail Swing Radius | 131 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 46 in |
Undercarriage
| Ground Pressure | 9 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 45 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 270 in |
|---|---|
| Max Reach Along Ground | 409 in |
| Max Loading Height | 270 in |
| Max Vertical Wall Digging Depth | 222 in |
| Max Cutting Height | 389 in |
Bucket
| Reference Bucket Capacity | 1.90 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.50 yd³ |
| Minimum Bucket Capacity | 1.60 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 292 in |
|---|---|
| Max Vertical Wall Digging Depth | 256 in |
| Max Cutting Height | 403 in |
| Max Loading Height | 281 in |
| Max Reach Along Ground | 430 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 323 in |
|---|---|
| Max Cutting Height | 419 in |
| Max Loading Height | 296 in |
| Max Vertical Wall Digging Depth | 291 in |
| Max Reach Along Ground | 461 in |
