Tata Hitachi

ZAXIS350H

Excavator

Operating Weight
72,532 lb
Max Digging Depth
292 in
Net Power
184.0 hp
All excavators

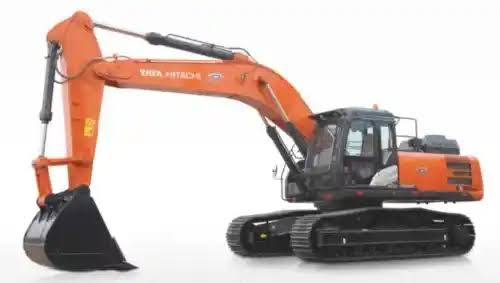

Tata Hitachi ZAXIS350H Excavator
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight72,532 lb
Fuel Capacity148.0 gal
Hydraulic Pump Flow Capacity153.3 gal/min
Hydraulic System Fluid Capacity84.6 gal
Hydraulic System Relief Valve Pressure5,047 psi
Engine Oil Capacity9.6 gal
Cooling System Fluid Capacity9.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity4.4 gal

Engine

Engine specifications
Engine ModelAA-6HK1X
Displacement475 in³
Net Power184.0 hp
Aspirationturbocharged
Max Torque644 lb-ft

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab124 in
Length of Track on Ground148 in
Tail Swing Radius131 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance46 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Track Gauge102 in
Number of Track Rollers per Side8
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side45
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth292 in
Max Reach Along Ground430 in
Max Loading Height281 in
Max Vertical Wall Digging Depth256 in
Max Cutting Height403 in
Shipping Length of Unit432 in
Shipping Height of Unit127 in

Bucket

Bucket specifications
Reference Bucket Capacity1.90 yd³
Maximum Bucket Capacity2.50 yd³
Minimum Bucket Capacity1.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
