Tata Hitachi

ZAXIS450H

Excavator

Net Power
315.2 hp
All excavators

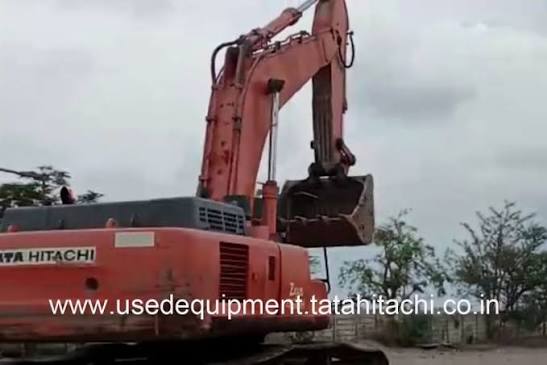

Tata Hitachi ZAXIS450H Excavator
1 / 5
Image 1 of 5
Image: tatahitachi.co.in

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity171.8 gal
Hydraulic System Fluid Capacity21.2 gal
Engine Oil Capacity14.6 gal
Cooling System Fluid Capacity16.2 gal
Operating Voltage24 V
Swing Speed9 rpm

Engine

Engine specifications
Engine ModelAA-6WG 1TQA
Displacement957 in³
Net Power315.2 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Height - Top of Cab128 in
Length of Track on Ground159 in
Upper Structure Ground Clearance49 in
Length of Tracks199 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Number of Upper Rollers2
Loading Shovel Operating Weight103,176 lb
Loading Shovel Shoe Width24 in
Loading Shovel Ground Pressure12 psi
Number of Lower Rollers8
Backhoe Shoe Width 124 in
Backhoe Operating Weight - Shoe 1100,972 lb
Backhoe Ground Pressure - Shoe 112 psi
Number of Track Shoes per Side47

Loading Shovel

Loading Shovel specifications
Max Dig Depth168 in
Max Cutting Height393 in
Max Dump Height291 in
Max Dig Reach346 in

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth234 in
Max Cutting Height415 in
Max Dump Height283 in
Max Reach on Ground403 in
Max Vertical Wall Dig Depth166 in

Backhoe Boom / Stick 2

Backhoe Boom / Stick 2 specifications
Max Dig Depth247 in
Max Cutting Height420 in
Max Dump Height288 in
Max Reach on Ground415 in
Max Vertical Wall Dig Depth181 in

Backhoe Boom / Stick 3

Backhoe Boom / Stick 3 specifications
Max Dig Depth289 in
Max Cutting Height396 in
Max Dump Height275 in
Max Reach on Ground438 in
Max Vertical Wall Dig Depth165 in

Backhoe Boom / Stick 4

Backhoe Boom / Stick 4 specifications
Max Dig Depth311 in
Max Cutting Height432 in
Max Dump Height298 in
Max Reach on Ground468 in
Max Vertical Wall Dig Depth268 in
