Tata Hitachi

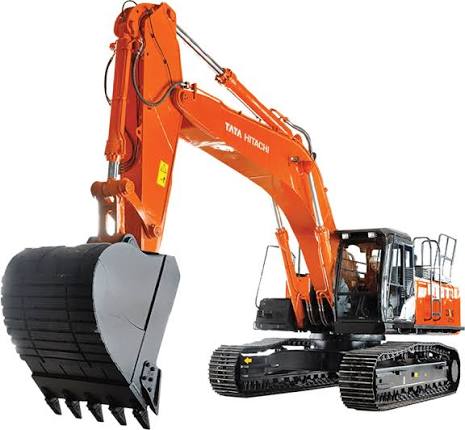

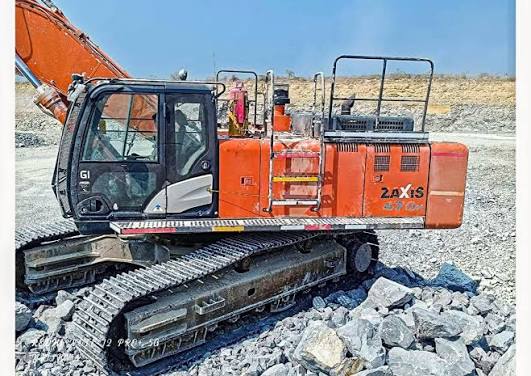

ZAXIS470LCH
- Operating Weight
- 106,042 lb
- Max Digging Depth
- 228 in
- Max Digging Depth
- 243 in
- Net Power
- 348.7 hp
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 106,042 lb |
|---|---|
| Fuel Capacity | 191.6 gal |
| Hydraulic Pump Flow Capacity | 190.3 gal/min |
| Hydraulic System Fluid Capacity | 148.0 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 15.1 gal |
| Cooling System Fluid Capacity | 14.6 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.8 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | AH-6WG1XYSA-01 |
|---|---|
| Displacement | 957 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 348.7 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 1,165 lb-ft |
Dimensions
| Ground Clearance | 29 in |
|---|---|
| Height - Top of Cab | 137 in |
| Length of Track on Ground | 176 in |
| Tail Swing Radius | 144 in |
| Width to Outside of Tracks | 138 in |
| Removal Counterweight Clearance | 54 in |
Undercarriage
| Ground Pressure | 12 psi |
|---|---|
| Track Gauge | 114 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 53 |
| Number of Carrier Rollers per Side | 3 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 228 in |
|---|---|
| Max Reach Along Ground | 402 in |
| Max Loading Height | 289 in |
| Max Vertical Wall Digging Depth | 168 in |
| Max Cutting Height | 420 in |
Bucket
| Reference Bucket Capacity | 2.50 yd³ |
|---|---|
| Maximum Bucket Capacity | 3.51 yd³ |
| Minimum Bucket Capacity | 2.50 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 243 in |
|---|---|
| Max Vertical Wall Digging Depth | 183 in |
| Max Cutting Height | 426 in |
| Max Loading Height | 294 in |
| Max Reach Along Ground | 414 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 284 in |
|---|---|
| Max Cutting Height | 401 in |
| Max Loading Height | 280 in |
| Max Vertical Wall Digging Depth | 169 in |
| Max Reach Along Ground | 437 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 306 in |
|---|---|
| Max Cutting Height | 435 in |
| Max Reach Along Ground | 467 in |
| Max Loading Height | 301 in |
| Max Vertical Wall Dig Depth | 280 in |
