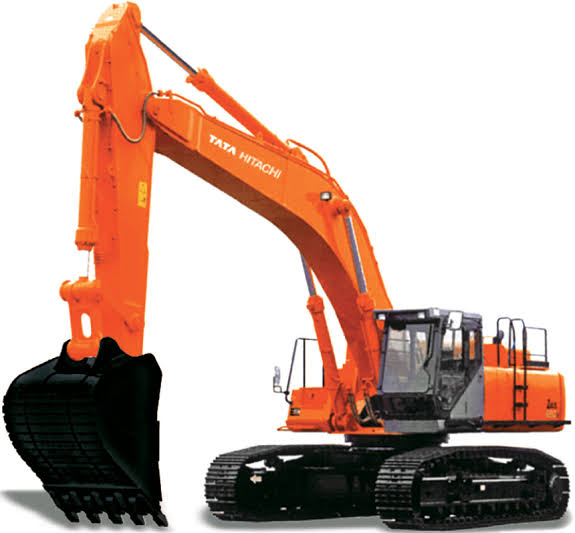

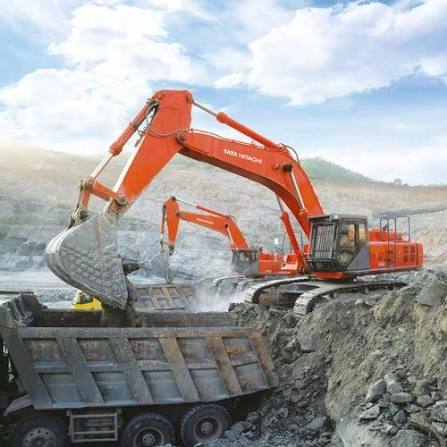

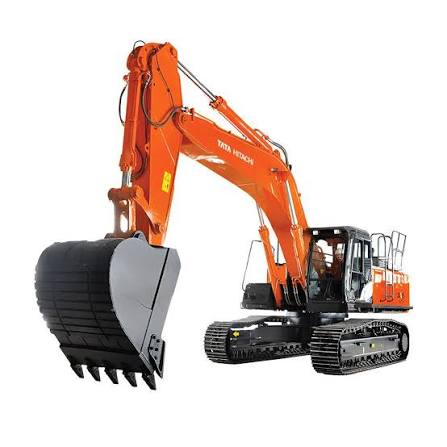

Tata Hitachi
ZAXIS650LC
- Operating Weight
- 145,285 lb
- Max Digging Depth
- 281 in
- Max Digging Depth
- 336 in
- Net Power
- 462.7 hp
1 / 5
Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight | 145,285 lb |
|---|---|
| Fuel Capacity | 237.8 gal |
| Hydraulic Pump Flow Capacity | 241.0 gal/min |
| Hydraulic System Fluid Capacity | 179.7 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 15.1 gal |
| Cooling System Fluid Capacity | 15.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 2.8 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | AH-6WG1XYSA-02 |
|---|---|
| Displacement | 957 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 462.7 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 1,460 lb-ft |
Dimensions
| Ground Clearance | 35 in |
|---|---|
| Height - Top of Cab | 137 in |
| Length of Track on Ground | 181 in |
| Tail Swing Radius | 152 in |
| Width to Outside of Tracks | 156 in |
| Removal Counterweight Clearance | 61 in |
Undercarriage
| Ground Pressure | 14 psi |
|---|---|
| Track Gauge | 131 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.1 mph |
| Shoe Size | 26 in |
| Number of Shoes per Side | 47 |
| Number of Carrier Rollers per Side | 3 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 281 in |
|---|---|
| Max Reach Along Ground | 454 in |
| Max Loading Height | 289 in |
| Max Vertical Wall Digging Depth | 209 in |
| Max Cutting Height | 442 in |
Bucket
| Reference Bucket Capacity | 3.81 yd³ |
|---|---|
| Maximum Bucket Capacity | 4.39 yd³ |
| Minimum Bucket Capacity | 2.39 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 336 in |
|---|---|
| Max Vertical Wall Digging Depth | 292 in |
| Max Cutting Height | 470 in |
| Max Loading Height | 318 in |
| Max Reach Along Ground | 512 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 361 in |
|---|---|
| Max Cutting Height | 482 in |
| Max Loading Height | 329 in |
| Max Vertical Wall Digging Depth | 323 in |
| Max Reach Along Ground | 536 in |
