Tata Hitachi

ZAXIS850

Excavator

Operating Weight
177,472 lb
Max Digging Depth
282 in
Max Digging Depth
350 in
Net Power
532.4 hp
All excavators

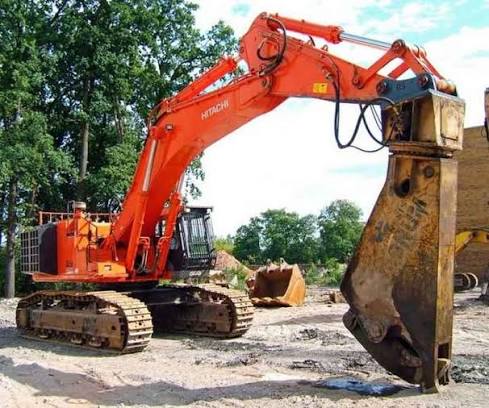

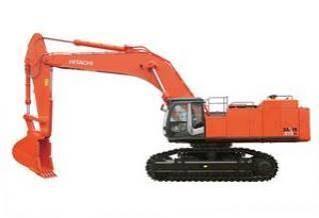

Tata Hitachi ZAXIS850 Excavator
1 / 5
Image 1 of 5
Image: psnce.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Operating Weight177,472 lb
Fuel Capacity295.9 gal
Hydraulic Pump Flow Capacity279.0 gal/min
Hydraulic System Fluid Capacity208.7 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity15.1 gal
Cooling System Fluid Capacity30.7 gal
Operating Voltage24 V
Swing Drive Fluid Capacity4.0 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAH-6WG1XYSA-03
Displacement957 in³
Net Power532.4 hp
Aspirationturbocharged
Max Torque1,660 lb-ft

Dimensions

Dimensions specifications
Ground Clearance36 in
Height - Top of Cab144 in
Length of Track on Ground181 in
Tail Swing Radius181 in
Width to Outside of Tracks162 in
Removal Counterweight Clearance67 in

Undercarriage

Undercarriage specifications
Ground Pressure18 psi
Track Gauge137 in
Number of Track Rollers per Side8
Max Travel Speed2.6 mph
Shoe Size26 in
Number of Shoes per Side47
Number of Carrier Rollers per Side3

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth282 in
Max Reach Along Ground474 in
Max Loading Height320 in
Max Vertical Wall Digging Depth162 in
Max Cutting Height474 in

Bucket

Bucket specifications
Reference Bucket Capacity4.60 yd³
Maximum Bucket Capacity5.90 yd³
Minimum Bucket Capacity3.81 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed7 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth350 in
Max Vertical Wall Digging Depth283 in
Max Cutting Height514 in
Max Loading Height357 in
Max Reach Along Ground545 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth377 in
Max Cutting Height545 in
Max Loading Height384 in
Max Vertical Wall Digging Depth335 in
Max Reach Along Ground577 in
