TCM
Case
21D
Wheel Loader
43 specifications
1 / 5

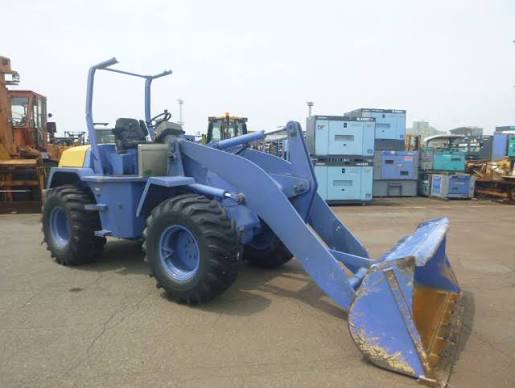

Image 1 of 5
Specifications
17 data points
Operating Specifications
| Operating Weight | 10,351 lb |
|---|---|
| Fuel Capacity | 19.9 gal |
| Tire Size | 17.5/65 |
| Static Tipping Weight | 7,496 lb |
Engine
| Engine Model | V3300-DI-KA |
|---|---|
| Net Power | 59.2 hp |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 108 in |
| Wheelbase | 88 in |
| Reach at Max Lift and Dump | 47 in |
| Length with Bucket on Ground | 198 in |
Transmission
| Max Speed - Forward | 21.4 mph |
|---|---|
| Max Speed - Reverse | 21.4 mph |
| Transmission Type | powershift |
Bucket
| Bucket Capacity - heaped | 1.20 yd³ |
|---|---|
| Dump Clearance at Max Raise | 100 in |
| Bucket Width | 79 in |
