Terex

180LC-2

Excavator

Operating Weight
38,933 lb
Max Digging Depth
226 in
Max Digging Depth
241 in
Net Power
118.0 hp
All excavators

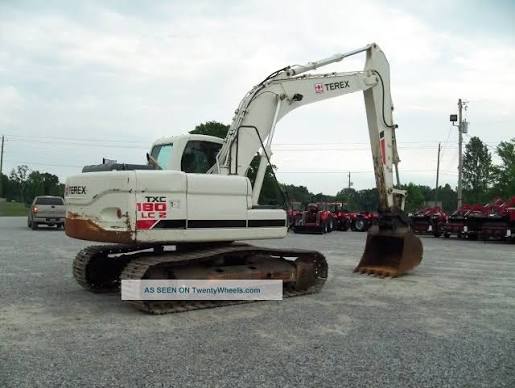

Terex 180LC-2 Excavator
1 / 5
Image 1 of 5
Image: wakarusaequipment.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight38,933 lb
Fuel Capacity74.0 gal
Hydraulic Pump Flow Capacity80.4 gal/min
Hydraulic System Fluid Capacity49.2 gal
Hydraulic System Relief Valve Pressure4,699 psi
Engine Oil Capacity6.7 gal
Cooling System Fluid Capacity5.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.1 gal
Alternator Supplied Amperage200 A

Engine

Engine specifications
Engine ModelTier III DL06
Displacement359 in³
Gross Power120.0 hp
Net Power118.0 hp
AspirationTurbocharged air to water intercooled
Max Torque347 lb-ft

Dimensions

Dimensions specifications
Height - Top of Cab115 in
Length of Track on Ground126 in
Tail Swing Radius97 in
Width to Outside of Tracks110 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side44
Shoe Size20 in
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth226 in
Max Reach Along Ground339 in
Max Loading Height247 in
Max Vertical Wall Digging Depth183 in
Max Cutting Height353 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth241 in
Max Vertical Wall Digging Depth199 in
Max Cutting Height362 in
Max Loading Height256 in
Max Reach Along Ground354 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth261 in
Max Cutting Height359 in
Max Loading Height256 in
Max Vertical Wall Digging Depth203 in
Max Reach Along Ground369 in
