Terex

TB100

Aerial Lift

Max Platform Height
1,200 in
Overall Length
35 in
Overall Width
98 in
All aerial lifts

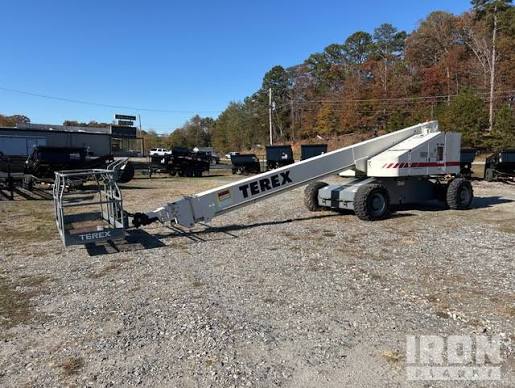

Terex TB100 Aerial Lift
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

25 data points

Engine

Engine specifications
Engine ModelLRG-425
Gross Power76.0 hp
Engine MakeFord
Fuel TypeGasoline

Dimensions

Dimensions specifications
Ground Clearance11 in
Wheelbase144 in
Overall Length35 in
Overall Width98 in
Tail Swing Radius36 in
Turning Radius271 in
Gradeability35.0 %
Stowed Height108 in
Shipping weight39,300 lb
Wheel track7 in

Performance

Performance specifications
Max Speed3.1 mph
Tire Size15 x 19.5 13 P.R
Hydraulic System Fluid Capacity52.0 gal
Fuel Capacity40.0 gal

Platform

Platform specifications
Max Platform Height1,200 in
Max Platform Weight Capacity500 lb
Platform Inner Length72 in
Platform Inner Width36 in
Max Working Height1,272 in
Max Horizontal Reach809 in
Platform Rotation160 °
