Terex

TB66

Aerial Lift

Max Platform Height
792 in
Overall Length
28 in
Overall Width
86 in
All aerial lifts

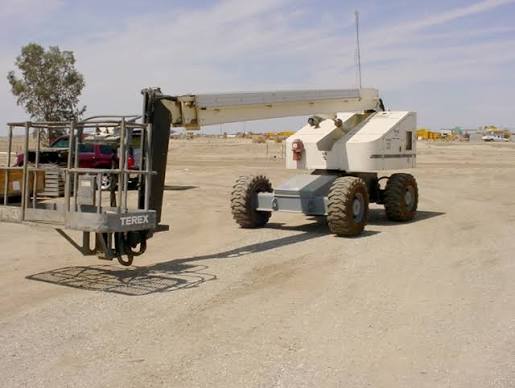

Terex TB66 Aerial Lift
1 / 5
Image 1 of 5
Image: purplewave.com

Specifications

28 data points

Engine

Engine specifications
Engine ModelLRG-425
Gross Power62.0 hp
Engine MakeFord
Fuel TypeGasoline

Dimensions

Dimensions specifications
Ground Clearance10 in
Wheelbase96 in
Overall Length28 in
Overall Width86 in
Tail Swing Radius43 in
Turning Radius203 in
Gradeability25.0 %
Stowed Height111 in
Shipping weight25,000 lb
Wheel track7 in

Performance

Performance specifications
Max Speed3.1 mph
Tire Size15 x 19.5 13 P.R
Hydraulic System Fluid Capacity52.0 gal
Fuel Capacity40.0 gal
Hydraulic System Relief Valve Pressure2,500 psi
Wheel load7,350 lb
Wheel load concentrated pressure170 psi

Platform

Platform specifications
Max Platform Height792 in
Max Platform Weight Capacity500 lb
Platform Inner Length72 in
Platform Inner Width36 in
Max Working Height864 in
Max Horizontal Reach690 in
Platform Rotation360 °
