Terex

TL100

Wheel Loader

Operating Weight
13,230 lb
Bucket Capacity - heaped
1.29 yd³
Net Power
73.5 hp
All wheel loaders

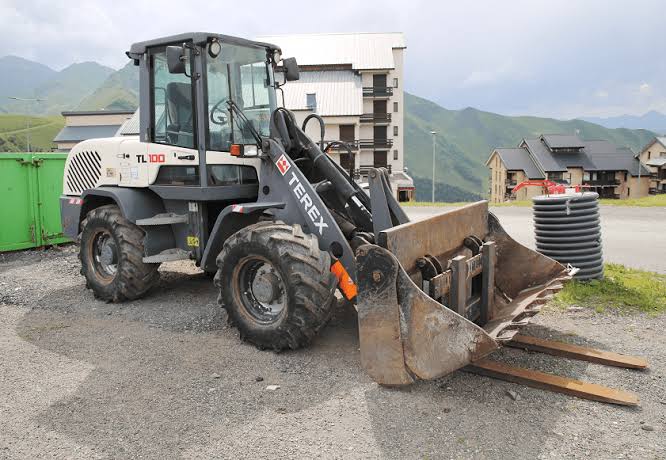

Terex TL100 Wheel Loader
1 / 5
Image 1 of 5
Image: schaeff-yanmar.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,230 lb
Fuel Capacity29.1 gal
Tire Size405/70 R 20 EM 01 Mitas
Hydraulic System Fluid Capacity23.3 gal
Static Tipping Weight10,538 lb
Operating Voltage12 V
Turning Radius175 in
Rear Axle Oscillation24 °
Rated Bucket Capacity1.10 – 2.00 yd³

Engine

Engine specifications
Engine ModelBF 4M 2011
Displacement189 in³
Power Measured @2,200 rpm
Net Power73.5 hp
Number of Cylinders4
Aspirationnatural
MakeDeutz

Weights

Weights specifications
Operating Weight13,230 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.0 gal/min
Relief Valve Setting3,625 psi

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab109 in
Wheelbase88 in
Width Over Tires73 in
Reach at Max Lift and Dump29 in
Length with Bucket on Ground210 in
Hinge Pin - Max Height133 in

Transmission

Transmission specifications
Max Speed - Forward12.5 mph
Max Speed - Reverse12.5 mph
Transmission TypeHydrosatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped1.29 yd³
Dump Clearance at Max Raise104 in
Breakout Force12,375 lb
Bucket Width77 in

General Specifications

General Specifications specifications
Operating Weight12,787 (5,800) — Starting 2016 Model Year
Bucket Capacity1.31 - 2.03 (1.0 - 1.55) — Starting 2016 Model Year
Engine typeDeutz — Starting 2016 Model Year
Engine Power75 (56) — Starting 2016 Model Year
Max Dump Height8.6 (2.64) — Starting 2016 Model Year
