Terex

TL260

Wheel Loader

Operating Weight
32,855 lb
Bucket Capacity - heaped
3.51 yd³
Net Power
175.0 hp
All wheel loaders

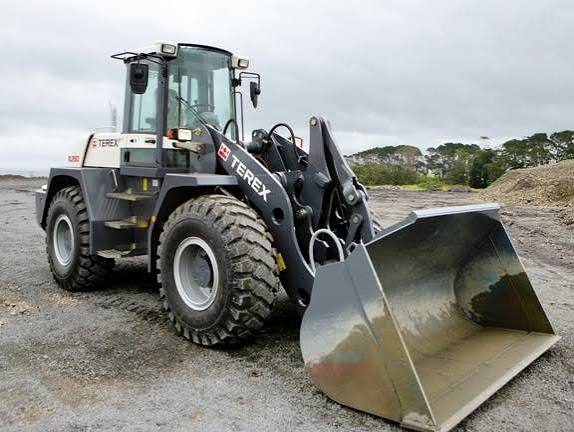

Terex TL260 Wheel Loader
1 / 5

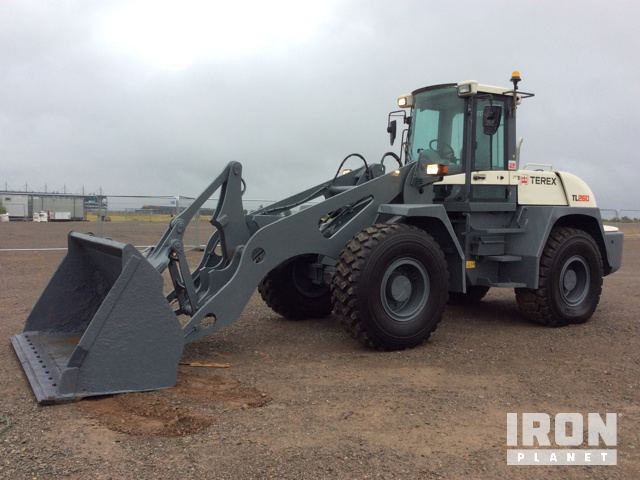

Image 1 of 5
Image: eu.ironplanet.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight32,855 lb
Fuel Capacity63.5 gal
Tire Size20.5-25 EM
Hydraulic System Fluid Capacity35.7 gal
Static Tipping Weight24,251 lb
Operating Voltage24 V
Turning Radius240 in
Rear Axle Oscillation24 °
Rated Bucket Capacity3.30 – 6.00 yd³

Engine

Engine specifications
Engine Model1106C-E60 TA Intercooler
Displacement366 in³
Power Measured @2,200 rpm
Net Power175.0 hp
Number of Cylinders6
Aspirationturbocharged
MakePerkins

Weights

Weights specifications
Operating Weight32,855 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity42.3 gal/min
Relief Valve Setting4,500 psi

Dimensions

Dimensions specifications
Ground Clearance25 in
Height - Top of Cab126 in
Wheelbase122 in
Width Over Tires94 in
Reach at Max Lift and Dump46 in
Length with Bucket on Ground288 in
Hinge Pin - Max Height159 in

Transmission

Transmission specifications
Max Speed - Forward24.9 mph
Max Speed - Reverse24.9 mph
Transmission Typehydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped3.51 yd³
Dump Clearance at Max Raise113 in
Breakout Force26,955 lb
Bucket Width100 in

General Specifications

General Specifications specifications
Operating Weight31,750 (14,400) — Starting 2016 Model Year
Bucket Capacity3.3 to 5.9 (2.5 to 4.5) — Starting 2016 Model Year
Engine typePerkins — Starting 2016 Model Year
Engine Power174 (128) — Starting 2016 Model Year
Max Dump Height9.3 (2.85) — Starting 2016 Model Year
