Terex

TR40

Off-Highway Truck

Operating Weight
157,200 lb
Max Speed
36.1 mph
Gross Power
475.0 hp
Net Power
444.0 hp
All off-highway trucks

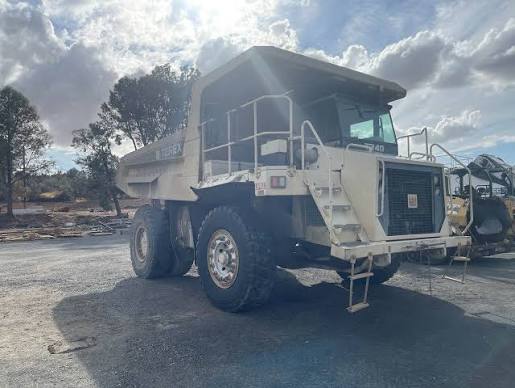

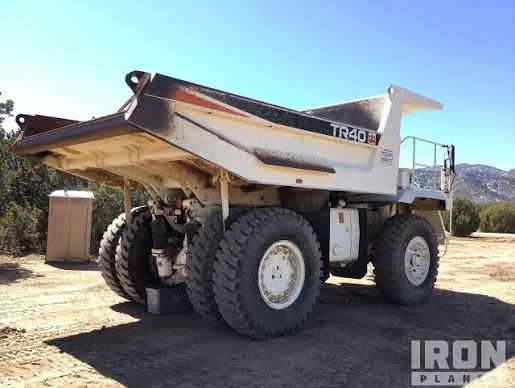

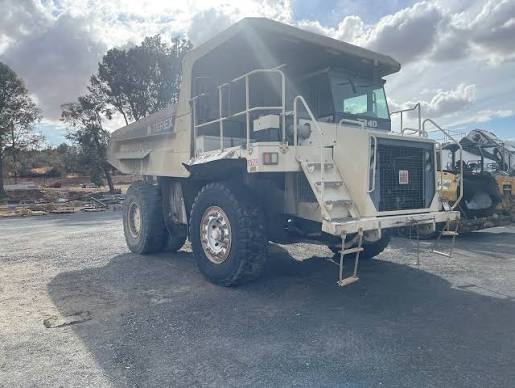

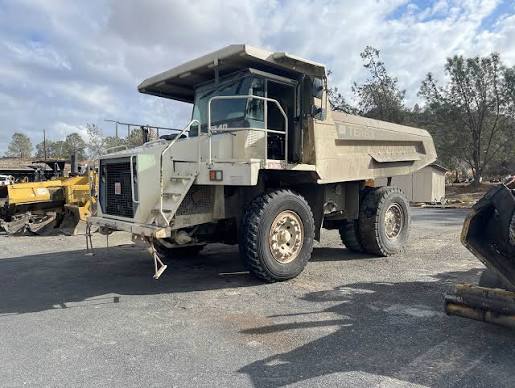

Terex TR40 Off-Highway Truck
1 / 5
Image 1 of 5
Image: prosourceqpt.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity160.0 gal
Tire Size18.00 R33
Engine Oil Capacity10.8 gal
Cooling System Fluid Capacity31.7 gal
Hydraulic System Fluid Capacity97.0 gal
Operating Voltage24 V
Steering System Fluid Capacity22.5 gal
Diff and Final Drive Fluid Capacity15.8 gal

Engine

Engine specifications
Engine ModelN14-C475
Displacement855 in³
Power Measured @2,100 rpm
Gross Power475.0 hp
Net Power444.0 hp
Number of Cylinders6
Max Torque1,475 lb-ft
MakeCummins
Rated Engine Speed97 rpm

Weights

Weights specifications
Operating Weight157,200 lb
Empty Weight75,839 lb
Loaded Weight155,867 lb
Weight Distribution Front - loaded34.0 %
Weight Distribution Rear - loaded66.0 %
Weight Distribution Front - empty48.0 %
Weight Distribution Rear - empty52.0 %

Dimensions

Dimensions specifications
Ground Clearance20 in
Wheelbase156 in
Overall Length343 in
Overall Width173 in
Overall Height165 in
Dump Height292 in
Dump Ground Clearance20 in

Transmission

Transmission specifications
Max Speed36.1 mph
Transmission TypeAllison M5600A
Number of Gears - Forward6
Number of Gears - Reverse2

Drive System

Drive System specifications
Drive Config4x2

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank79,991.3 gal

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidRigid

Dump

Dump specifications
Dump Angle58 °
Raise Time13.0 s
Lower Time9.0 s
Load Capacity - heaped31.19 yd³
Load Capacity - Struck22.50 yd³

Approximate Weights - Flat Floor

Approximate Weights - Flat Floor specifications
Body1,300 lb
