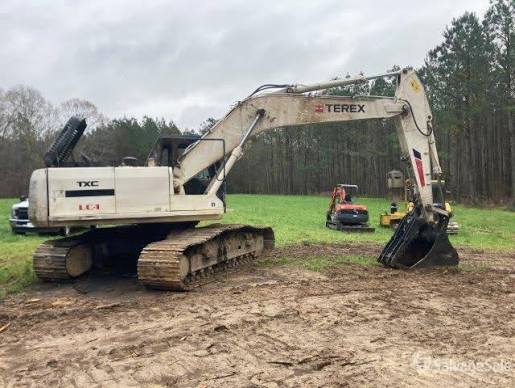

Terex
TXC 300LC-1
- Operating Weight
- 67,462 lb
- Max Digging Depth
- 291 in
- Max Digging Depth
- 315 in
- Net Power
- 197.0 hp
1 / 5
Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight | 67,462 lb |
|---|---|
| Fuel Capacity | 118.9 gal |
| Hydraulic Pump Flow Capacity | 130.6 gal/min |
| Hydraulic System Fluid Capacity | 76.7 gal |
| Hydraulic System Relief Valve Pressure | 4,690 psi |
| Engine Oil Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 11.4 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal |
Engine
| Engine Model | DE08TIS |
|---|---|
| Displacement | 493 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 200.0 hp |
| Net Power | 197.0 hp |
| Aspiration | Turbocharged air to air intercooled |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 622 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 121 in |
| Length of Track on Ground | 158 in |
| Tail Swing Radius | 126 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 47 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 103 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 291 in |
|---|---|
| Max Reach Along Ground | 417 in |
| Max Loading Height | 287 in |
| Max Vertical Wall Digging Depth | 245 in |
| Max Cutting Height | 407 in |
Bucket
| Reference Bucket Capacity | 1.70 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.30 yd³ |
| Minimum Bucket Capacity | 1.10 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 315 in |
|---|---|
| Max Vertical Wall Digging Depth | 267 in |
| Max Cutting Height | 415 in |
| Max Loading Height | 295 in |
| Max Reach Along Ground | 445 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 289 in |
|---|---|
| Max Cutting Height | 408 in |
| Max Loading Height | 288 in |
| Max Vertical Wall Digging Depth | 243 in |
| Max Reach Along Ground | 415 in |
