Terex

TXC 340LC-1

Excavator

Operating Weight
76,500 lb
Max Digging Depth
302 in
Max Digging Depth
335 in
Net Power
247.0 hp
All excavators

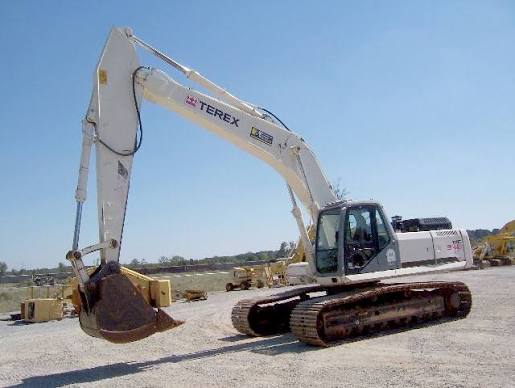

Terex TXC 340LC-1 Excavator
1 / 5
Image 1 of 5
Image: discount-equipment.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight76,500 lb
Fuel Capacity145.3 gal
Hydraulic Pump Flow Capacity140.6 gal/min
Hydraulic System Fluid Capacity121.6 gal
Hydraulic System Relief Valve Pressure4,690 psi
Engine Oil Capacity7.4 gal
Cooling System Fluid Capacity15.4 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.6 gal

Engine

Engine specifications
Engine ModelDE12TIS
Displacement675 in³
Power Measured @1,900 rpm
Gross Power250.0 hp
Net Power247.0 hp
AspirationTurbocharged
Torque Measured @1,400 rpm
Max Torque781 lb-ft

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab121 in
Length of Track on Ground158 in
Tail Swing Radius126 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance47 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge103 in
Number of Track Rollers per Side9
Max Travel Speed2.9 mph
Shoe Size24 in
Number of Shoes per Side51
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth302 in
Max Reach Along Ground435 in
Max Loading Height287 in
Max Vertical Wall Digging Depth245 in
Max Cutting Height411 in
Shipping Length of Unit419 in
Shipping Height of Unit133 in

Bucket

Bucket specifications
Reference Bucket Capacity2.00 yd³
Maximum Bucket Capacity2.39 yd³
Minimum Bucket Capacity1.70 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth335 in
Max Vertical Wall Digging Depth276 in
Max Cutting Height426 in
Max Loading Height301 in
Max Reach Along Ground466 in
