Tigercat

1065

Forwarder

Operating Weight - 8wd
46,630 lb
Max Speed
12.0 mph
All forwarders

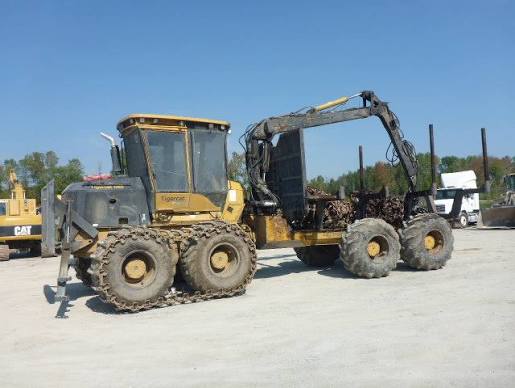

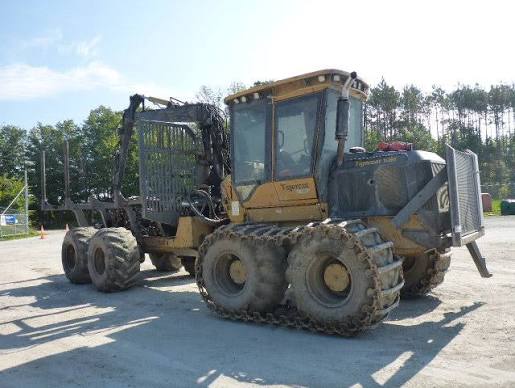

Tigercat 1065 Forwarder
1 / 5
Image 1 of 5
Image: marketbook.com.na

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - 8wd46,630 lb
Fuel Capacity50.2 gal
Hydraulic System Fluid Capacity33.9 gal
Alternator Supplied Amperage140 A
Operating Voltage24 V
Front/Rear Tire Size - 8wd750/55x26.5

Engine

Engine specifications
Engine Model906 Tier III
Power Measured @2,200 rpm
Power255.0 hp

Hydraulic System

Hydraulic System specifications
Pump Typevariable displacement axial piston

Dimensions

Dimensions specifications
Ground Clearance30 in
Width Over Tires130 in
Length432 in
Length of Bunk Area126 in

Transmission

Transmission specifications
Max Speed12.0 mph
Transmission TypeHydrostatic 2-speed gearbox

Bunk

Bunk specifications
Load Area22.09 yd³
Load Weight - 8wd39,680 lb

Crane

Crane specifications
Max Reach307 in
Gross Lift Torque111,349 lb-ft
Crane TypeLoglift F111-F78 with telescopic stick
Gross Slew Torque30,250 lb-ft
