Upright

MX19

Aerial Lift

Max Platform Height
229 in
Overall Length
6 in
Overall Width
30 in
All aerial lifts

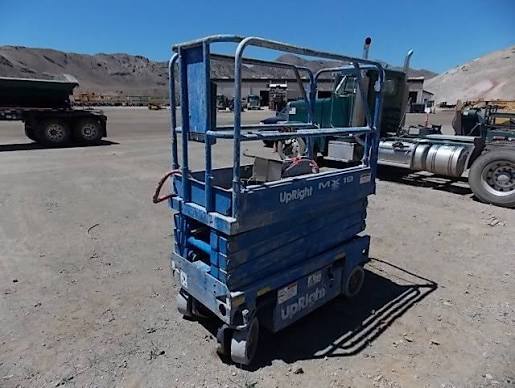

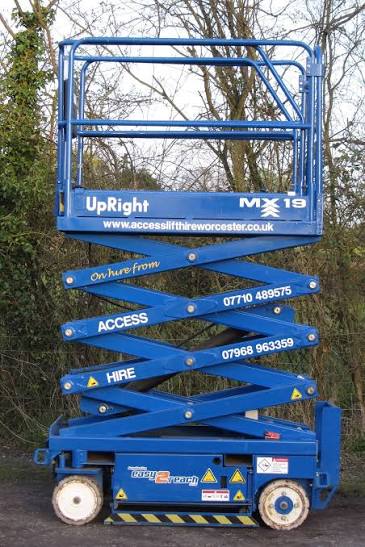

Upright MX19 Aerial Lift
1 / 5
Image 1 of 5
Image: manliftgroup.com

Specifications

20 data points

Engine

Engine specifications
System Voltage24 V
Battery Amp Hours220
Number of Batteries4
Charger Amps25

Dimensions

Dimensions specifications
Ground Clearance4 in
Overall Length6 in
Overall Width30 in
Height w/ Rails84 in
Height w/o Rails64 in

Performance

Performance specifications
Operating Weight3,219 lb
Max Speed2.3 mph
Tire Size305mm dia
Tire Fill/Typesolid / non-marking

Platform

Platform specifications
Max Platform Height229 in
Max Platform Weight Capacity500 lb
Platform Inner Length100 in
Platform Inner Width28 in
Max Working Height307 in
Lift Time19.0 s
Lower Time18.0 s
