Venieri
Case
21D

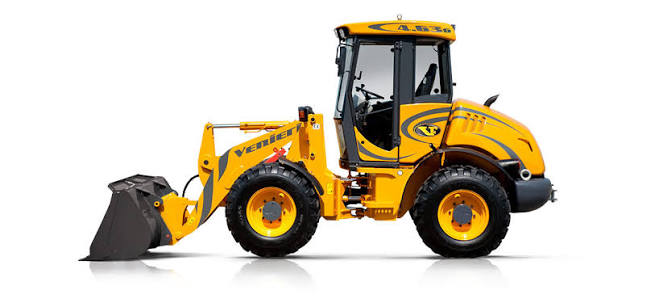

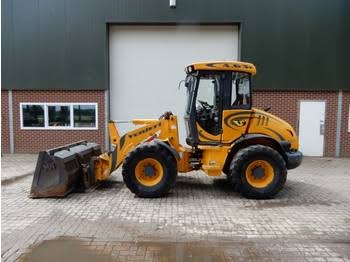

Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
22 data points
Operating Specifications
| Operating Weight | 11,905 lb |
|---|---|
| Tire Size | 16.7x20 |
| Static Tipping Weight | 7,496 lb |
| Turning Radius | 90 in |
Engine
| Engine Model | 804C-33T |
|---|---|
| Displacement | 201 in³ |
| Net Power | 77.8 hp |
| Number of Cylinders | 4 |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 110 in |
| Wheelbase | 85 in |
| Width Over Tires | 74 in |
| Reach at Max Lift and Dump | 32 in |
| Length with Bucket on Ground | 203 in |
Transmission
| Max Speed - Forward | 16.8 mph |
|---|---|
| Max Speed - Reverse | 16.8 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.40 yd³ |
|---|---|
| Dump Clearance at Max Raise | 104 in |
| Bucket Width | 77 in |
