Volvo
BM 4200
- Operating Weight
- 12,600 lb
- Bucket Capacity - heaped
- 1.10 yd³
- Gross Power
- 70.0 hp
- Net Power
- 67.0 hp
1 / 5

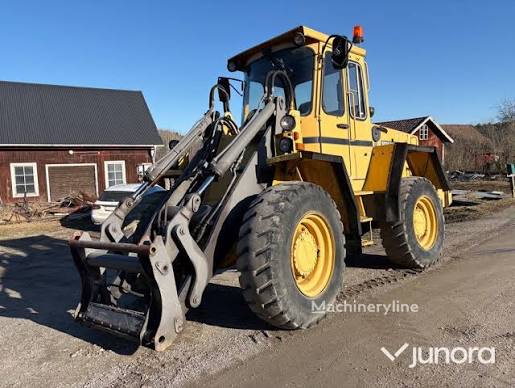

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 12,600 lb |
|---|---|
| Fuel Capacity | 25.1 gal |
| Tire Size | 14.9-24/12 |
| Hydraulic System Fluid Capacity | 27.8 gal |
| Static Tipping Weight | 7,496 lb |
| Operating Voltage | 24 V |
| Turning Radius | 168 in |
| Engine Oil Fluid Capacity | 2.2 gal |
| Rear Axle Oscillation | 22 ° |
| Alternator Supplied Amperage | 45 A |
| Front Axle/Diff Fluid Capacity | 2.0 gal |
| Rear Axle/Diff Fluid Capacity | 2.0 gal |
| Cooling System Fluid Capacity | 4.8 gal |
| Transmission Fluid Capacity | 4.8 gal |
Engine
| Engine Model | D 39 L |
|---|---|
| Displacement | 236 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 70.0 hp |
| Net Power | 67.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 27.3 gal/min |
|---|---|
| Raise Time | 5.2 s |
| Lower Time | 2.9 s |
| Dump Time | 1.7 s |
| Relief Valve Setting | 1,420 psi |
| Pump Type | Gear pump |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 109 in |
| Wheelbase | 108 in |
| Width Over Tires | 79 in |
| Reach at Max Lift and Dump | 29 in |
| Length with Bucket on Ground | 223 in |
| Hinge Pin - Max Height | 142 in |
Transmission
| Max Speed - Forward | 18.7 mph |
|---|---|
| Max Speed - Reverse | 18.7 mph |
| Transmission Type | power shift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 1.10 yd³ |
|---|---|
| Dump Clearance at Max Raise | 110 in |
| Breakout Force | 12,960 lb |
| Bucket Width | 79 in |
