Volvo
Case
21D
Wheel Loader
43 specifications
Volvo

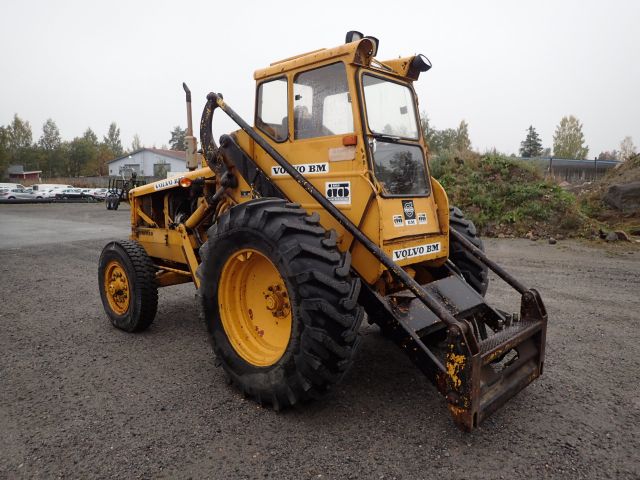

BM LM218
- Operating Weight
- 12,600 lb
- Bucket Capacity - heaped
- 2.80 yd³
- Gross Power
- 63.0 hp
- Net Power
- 56.0 hp
1 / 5
Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 12,600 lb |
|---|---|
| Tire Size | front 16.9-30/10 rear 9-20/10 |
| Static Tipping Weight | 5,291 lb |
| Operating Voltage | 12 V |
| Turning Radius | 198 in |
Engine
| Engine Model | BM 1113 |
|---|---|
| Displacement | 231 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 63.0 hp |
| Net Power | 56.0 hp |
| Number of Cylinders | 3 |
| Torque Measured @ | 1,100 rpm |
Hydraulic System
| Pump Flow Capacity | 34.4 gal/min |
|---|---|
| Relief Valve Setting | 1,070 psi |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 101 in |
| Wheelbase | 91 in |
| Length with Bucket on Ground | 203 in |
Transmission
| Max Speed - Forward | 16.2 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Number of Forward Gears | 5 |
| Number of Reverse Gears | 5 |
Bucket
| Bucket Capacity - heaped | 2.80 yd³ |
|---|---|
| Bucket Capacity - struck | 0.80 yd³ |
| Dump Clearance at Max Raise | 122 in |
| Breakout Force | 584,503 lb |
