Volvo
Case
21D
Wheel Loader
43 specifications
Volvo

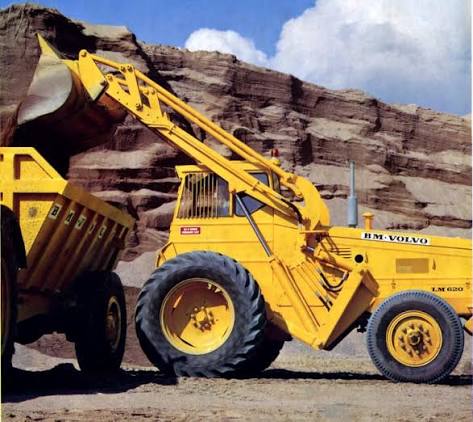

BM LM620
- Operating Weight
- 13,900 lb
- Bucket Capacity - heaped
- 3.90 yd³
- Gross Power
- 69.0 hp
- Net Power
- 63.0 hp
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 13,900 lb |
|---|---|
| Tire Size | front 16.9-30/10 rear 9.00-20/10 |
| Turning Radius | 192 in |
Engine
| Engine Model | BM1113A LH |
|---|---|
| Displacement | 230 in³ |
| Gross Power | 69.0 hp |
| Net Power | 63.0 hp |
| Number of Cylinders | 3 |
| Aspiration | direct injection |
Hydraulic System
| Pump Flow Capacity | 37.0 gal/min |
|---|---|
| Relief Valve Setting | 1,280 psi |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 100 in |
| Wheelbase | 90 in |
| Reach at Max Lift and Dump | 25 in |
| Length with Bucket on Ground | 215 in |
| Hinge Pin - Max Height | 151 in |
Transmission
| Max Speed - Forward | 18.4 mph |
|---|---|
| Max Speed - Reverse | 18.4 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 3.90 yd³ |
|---|---|
| Bucket Capacity - struck | 0.90 yd³ |
| Dump Clearance at Max Raise | 114 in |
